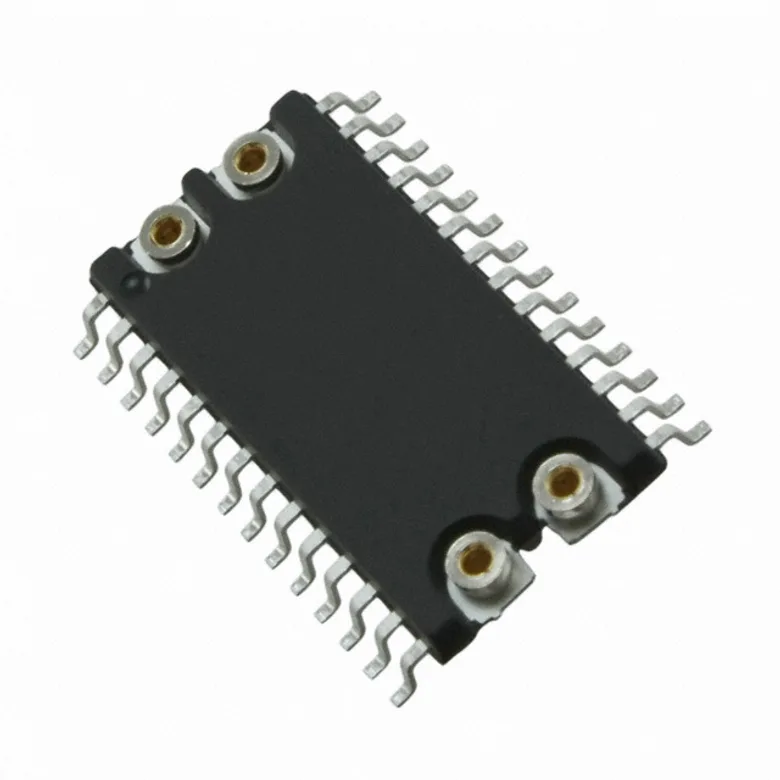

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics M48T86MH1E
Manufacturer
Manufacturer Product Number
M48T86MH1E
Description
IC RTC CLK/CALENDAR PAR 28SOH
Manufacturer Standard Lead Time Contact us
Detailed Description
IC RTC CLK/CALENDAR PAR 28SOH
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
DigiKey Programmable
Not Verified
Voltage - Supply
4.5V ~ 5.5V
Time Format
HH:MM:SS (12/24 hr)
Date Format
YY-MM-DD-dd
Features
Alarm, Leap Year, NVSRAM, Square Wave Output
Mounting Type
Surface Mount
Supplier Device Package
28-SOH
Memory Size
114B
Voltage - Supply, Battery
-
Interface
Parallel
Package / Case
28-SOP (0.350", 8.89mm Width) with SNAPHAT Sockets
Current - Timekeeping (Max)
15mA @ 4.5V ~ 5.5V
Type
Clock/Calendar
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
M48T86MH1E
606286
497-2863-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 76.000 ₫ 76.000 ₫
76.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
364
76.000 ₫
27.664.000 ₫
MOQ 364 · Order multiple 364
Substitutes
DS12885N+
IC RTC CLK/CALENDAR PAR 24DIP
349.000 ₫ Analog Devices Inc./Maxim Integrated
