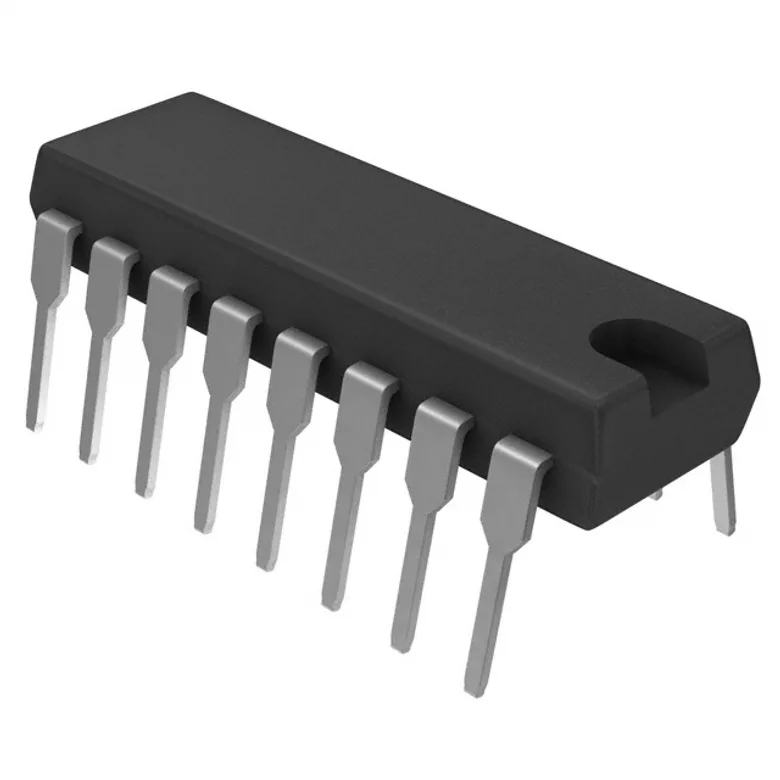

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics M74HC4094B1R
Manufacturer
Manufacturer Product Number
M74HC4094B1R
Description
IC SR TRI-STATE 8BIT 16-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Shift Shift Register 1 Element 8 Bit 16-DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Number of Bits per Element
8
Logic Type
Shift Register
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
2V ~ 6V
Output Type
Tri-State
Mounting Type
Through Hole
Supplier Device Package
16-DIP
Number of Elements
1
Package / Case
16-DIP (0.300", 7.62mm)
Function
Serial to Parallel
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
M74HC4094B1R
634749
497-2985-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 5.000 ₫ 5.000 ₫
5.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
4,000
5.000 ₫
20.000.000 ₫
MOQ 4,000 · Order multiple 4,000
Substitutes
CD74HC4094E
IC SR TRI-STATE 8BIT 16-PDIP
19.000 ₫ Texas Instruments
