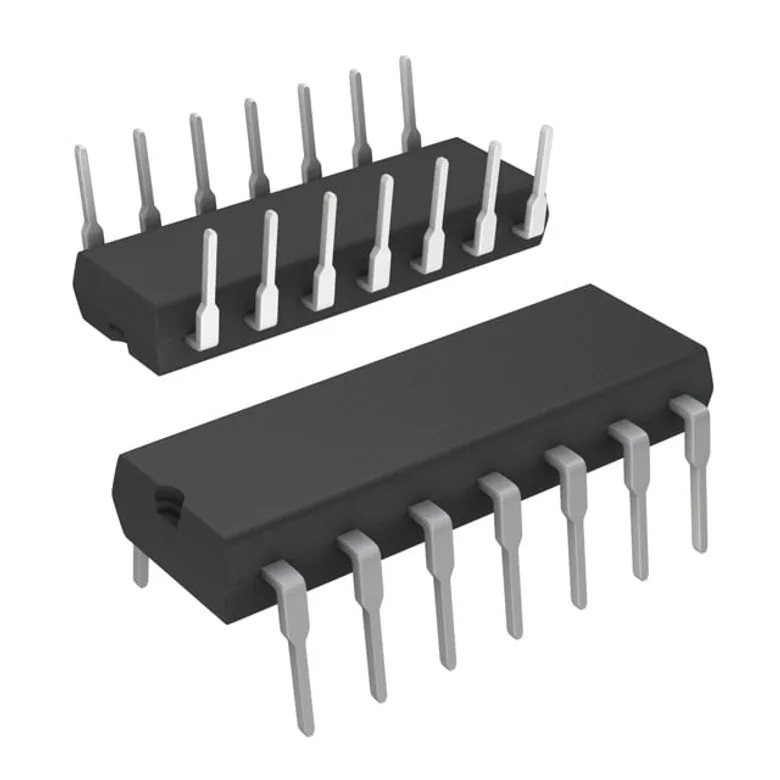

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics SA556N
Manufacturer
Manufacturer Product Number
SA556N
Description
IC OSC TIMER DUAL 500KHZ 14-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
555 Type, Timer/Oscillator (Dual) IC 500kHz 14-DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Operating Temperature
-40°C ~ 105°C
Voltage - Supply
4.5V ~ 16V
Count
-
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Frequency
500kHz
Package / Case
14-DIP (0.300", 7.62mm)
Type
555 Type, Timer/Oscillator (Dual)
Current - Supply
20 mA
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
SA556N
1038985
497-7420-5-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 8.000 ₫ 8.000 ₫
8.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
3,000
8.000 ₫
24.000.000 ₫
MOQ 3,000 · Order multiple 3,000
