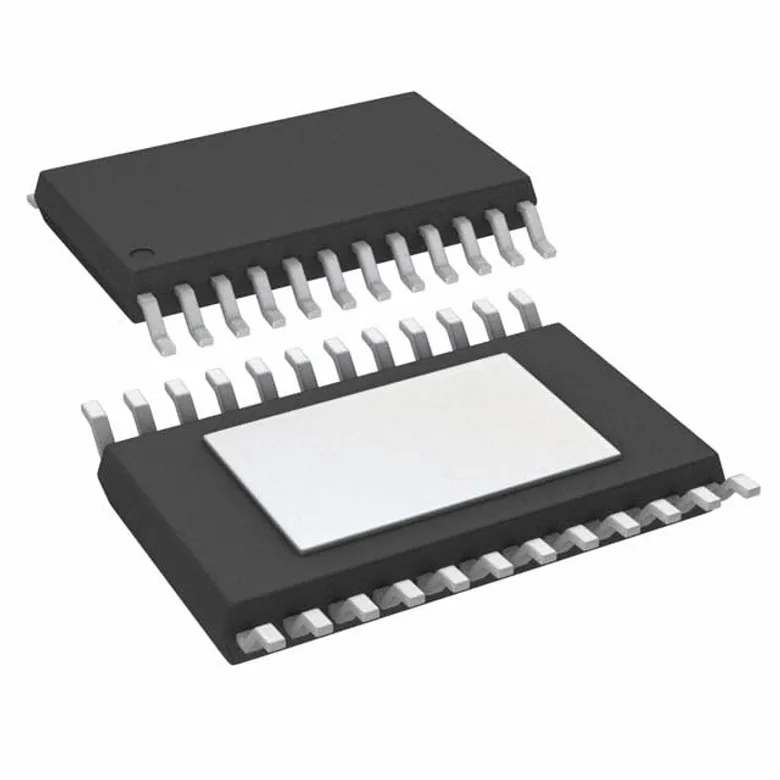

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STAP16DPPS05XTTR
Manufacturer
Manufacturer Product Number
STAP16DPPS05XTTR
Description
IC LED DRVR LINEAR 40MA 24HTSSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC LED DRVR LINEAR 40MA 24HTSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
End of life
Operating Temperature
-40°C ~ 125°C (TJ)
Applications
Backlight, Lighting
Voltage - Output
20V
Current - Output / Channel
40mA
Internal Switch(s)
Yes
Mounting Type
Surface Mount
Number of Outputs
16
Supplier Device Package
24-HTSSOP
Dimming
-
Frequency
30MHz
Package / Case
24-TSSOP (0.173", 4.40mm Width) Exposed Pad
Type
Linear
Voltage - Supply (Min)
3V
Voltage - Supply (Max)
5.5V
Topology
Shift Register
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Design Resources
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
End of life
Additional Resources
Attribute
Description
Part Number Alias
STAP16DPPS05XTTR
4771956
497-14592-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 30.000 ₫ 30.000 ₫
30.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
30.000 ₫
75.000.000 ₫
MOQ 2,500 · Order multiple 2,500
