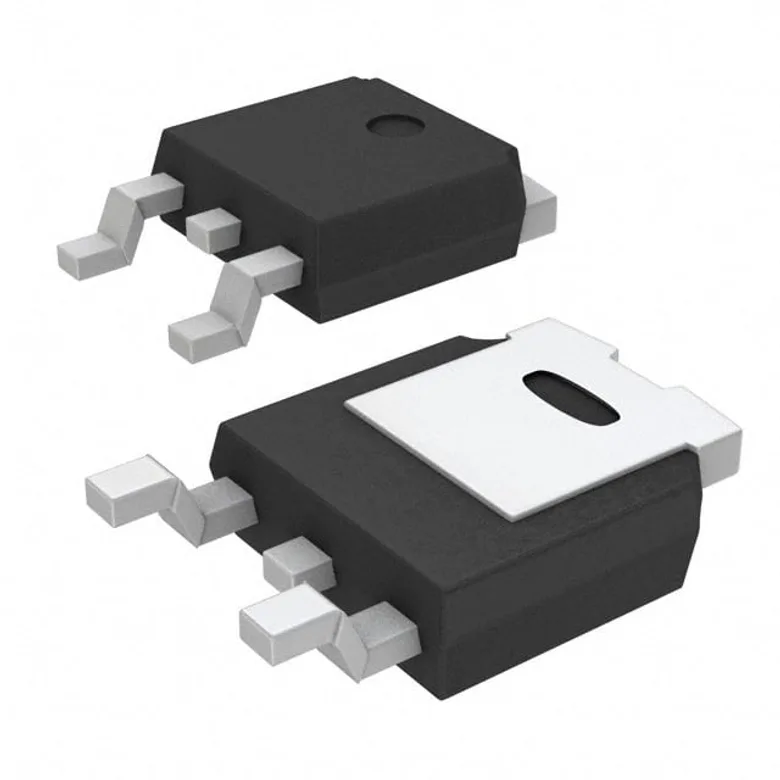

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STD20NF06LT4
Manufacturer
Manufacturer Product Number
STD20NF06LT4
Description
MOSFET N-CH 60V 24A DPAK
Manufacturer Standard Lead Time Contact us
Detailed Description
MOSFET N-CH 60V 24A DPAK
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Gate Charge (Qg) (Max) @ Vgs
13 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
660 pF @ 25 V
Operating Temperature
-55°C ~ 175°C (TJ)
Power Dissipation (Max)
60W (Tc)
Qualification
-
Technology
MOSFET (Metal Oxide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
24A (Tc)
Rds On (Max) @ Id, Vgs
40mOhm @ 12A, 10V
Vgs(th) (Max) @ Id
2.5V @ 250µA
Mounting Type
Surface Mount
FET Feature
-
Supplier Device Package
DPAK
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
5V, 10V
Vgs (Max)
±18V
Drain to Source Voltage (Vdss)
60 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Training Modules
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
STD20NF06LT4
1039356
497-5888-2-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4,000
Packaging Quantity Unit Price Ext Price
1 13.000 ₫ 13.000 ₫
13.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
13.000 ₫
32.500.000 ₫
5,000
12.000 ₫
60.000.000 ₫
7,500
12.000 ₫
90.000.000 ₫
12,500
11.000 ₫
137.500.000 ₫
17,500
11.000 ₫
192.500.000 ₫
MOQ 2,500 · Order multiple 2,500
