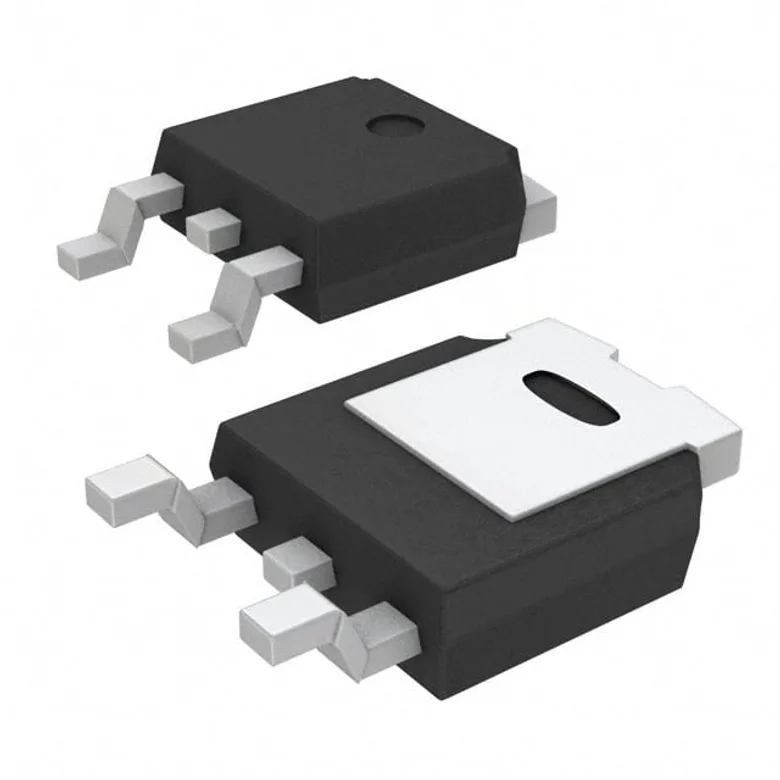

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STD7LN80K5
Manufacturer
Manufacturer Product Number
STD7LN80K5
Description
MOSFET N-CH 800V 5A DPAK
Manufacturer Standard Lead Time Contact us
Detailed Description
MOSFET N-CH 800V 5A DPAK
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Gate Charge (Qg) (Max) @ Vgs
12 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
270 pF @ 100 V
Operating Temperature
-55°C ~ 150°C (TJ)
Power Dissipation (Max)
85W (Tc)
Qualification
-
Technology
MOSFET (Metal Oxide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
5A (Tc)
Rds On (Max) @ Id, Vgs
1.15Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id
5V @ 100µA
Mounting Type
Surface Mount
FET Feature
-
Supplier Device Package
DPAK
Package / Case
TO-252-3, DPAK (2 Leads + Tab), SC-63
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
10V
Vgs (Max)
±30V
Drain to Source Voltage (Vdss)
800 V
Documents & Media
Resource Type
Link
EDA Models
Training Modules
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
STD7LN80K5
6003606
497-16491-1-ND
497-16491-2-ND
497-16491-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 4,816
Packaging Quantity Unit Price Ext Price
1 75.000 ₫ 75.000 ₫
75.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
75.000 ₫
75.000 ₫
10
49.000 ₫
490.000 ₫
100
34.000 ₫
3.400.000 ₫
500
27.000 ₫
13.500.000 ₫
1,000
26.000 ₫
26.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
23.000 ₫
57.500.000 ₫
5,000
21.000 ₫
105.000.000 ₫
7,500
21.000 ₫
157.500.000 ₫
MOQ 2,500 · Order multiple 2,500
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
75.000 ₫
75.000 ₫
10
49.000 ₫
490.000 ₫
100
34.000 ₫
3.400.000 ₫
500
27.000 ₫
13.500.000 ₫
1,000
26.000 ₫
26.000.000 ₫
MOQ 1 · Order multiple 1
