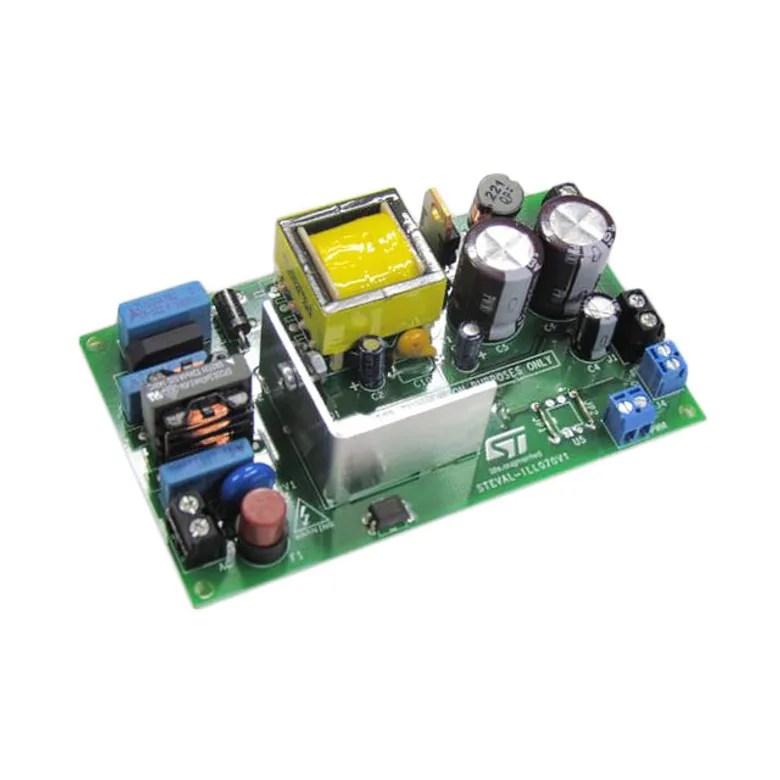

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STEVAL-ILL070V1
Manufacturer
Manufacturer Product Number
STEVAL-ILL070V1
Description
EVAL BOARD FOR HVLED001
Manufacturer Standard Lead Time Contact us
Detailed Description
EVAL BOARD FOR HVLED001
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Contents
Board(s)
Voltage - Output
48V
Current - Output / Channel
700mA
Features
Dimmable
Voltage - Input
90 ~ 305 VAC
Utilized IC / Part
HVLED001
Note
-
Outputs and Type
1 Isolated Output
Documents & Media
Resource Type
Link
Datasheets
Design Resources
Featured Products
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
STEVAL-ILL070V1
5168367
497-15242-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 2.774.000Â â‚« 2.774.000Â â‚«
2.774.000Â â‚«
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
2.774.000Â â‚«
2.774.000Â â‚«
MOQ 1 · Order multiple 1
For Use With
STPS20200CT
DIODE ARR SCHOTT 200V 10A TO-220
50.000Â â‚« STMicroelectronics
TSX561ILT
IC CMOS 1 CIRCUIT SOT23-5
28.000Â â‚« STMicroelectronics
TSM103WID
IC AMPLIFIER 8SO
26.000Â â‚« STMicroelectronics
STPS1H100A
DIODE SCHOTTKY 100V 1A DO214AC
12.000Â â‚« STMicroelectronics
TSX561ILT
IC CMOS 1 CIRCUIT SOT23-5
28.000Â â‚« STMicroelectronics
TSX561ILT
IC CMOS 1 CIRCUIT SOT23-5
28.000Â â‚« STMicroelectronics
STF8N80K5
MOSFET N-CH 800V 6A TO220FP
86.000Â â‚« STMicroelectronics
HVLED001
IC LED DRIVER OFFL PWM 10SSOP
32.000Â â‚« STMicroelectronics
