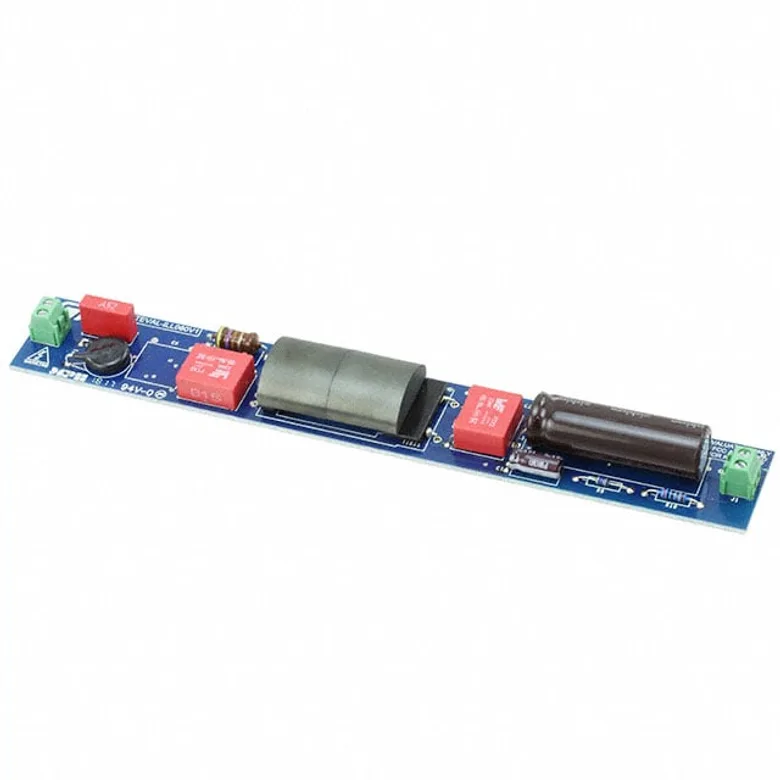

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STEVAL-ILL080V1
Manufacturer
Manufacturer Product Number
STEVAL-ILL080V1
Description
EVAL BOARD FOR HVLED001A
Manufacturer Standard Lead Time Contact us
Detailed Description
EVAL BOARD FOR HVLED001A
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Contents
Board(s)
Voltage - Output
75V ~ 93V
Current - Output / Channel
200mA
Features
-
Voltage - Input
180 ~ 264 VAC
Utilized IC / Part
HVLED001A
Note
-
Outputs and Type
1 Non-Isolated Output
Documents & Media
Resource Type
Link
Reference Designs
Design Resources
Additional Resources
Attribute
Description
Part Number Alias
STEVAL-ILL080V1
7785241
497-17664-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 811.000Â â‚« 811.000Â â‚«
811.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
811.000Â â‚«
811.000Â â‚«
MOQ 1 · Order multiple 1
