Image shown is representative only. Exact specifications should be obtained from the product datasheet.

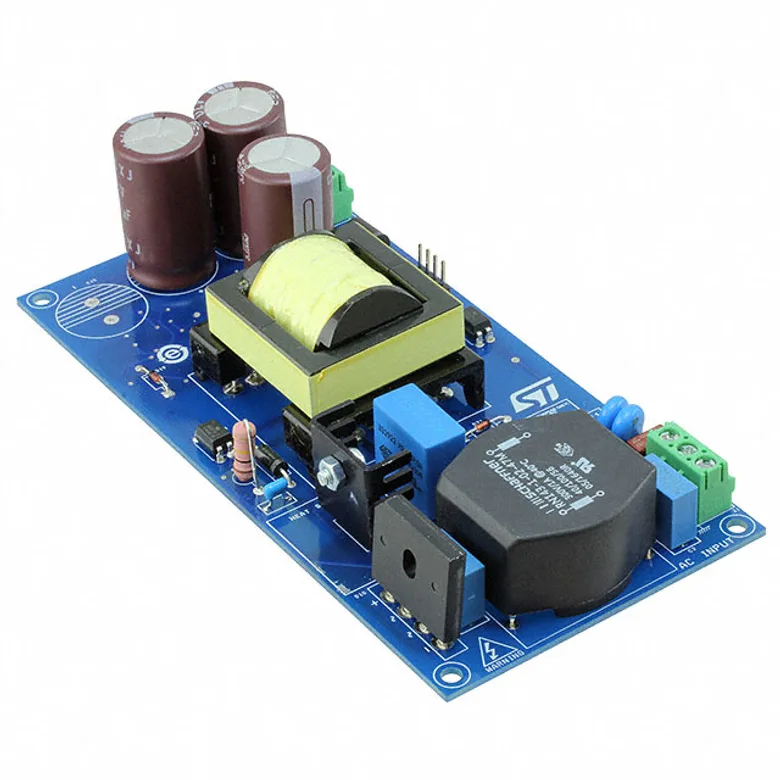

STMicroelectronics STEVAL-ILL085V1
Manufacturer
Manufacturer Product Number
STEVAL-ILL085V1
Description
EVAL BOARD FOR HVLED001A
Manufacturer Standard Lead Time Contact us
Detailed Description
EVAL BOARD FOR HVLED001A
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Contents
Board(s)
Voltage - Output
60V ~ 105V
Current - Output / Channel
700mA
Features
Dimmable
Voltage - Input
90 ~ 300 VAC
Utilized IC / Part
HVLED001A
Note
-
Outputs and Type
1 Non-Isolated Output
Documents & Media
Resource Type
Link
Datasheets
Reference Designs
Design Resources
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
STEVAL-ILL085V1
7785231
497-17654-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 1.981.000Â â‚« 1.981.000Â â‚«
1.981.000Â â‚«
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
1.981.000Â â‚«
1.981.000Â â‚«
MOQ 1 · Order multiple 1
For Use With
HVLED001ATR
IC LED DRIVER OFFL PWM 10SSOP
108.000Â â‚« STMicroelectronics
HVLED001ATR
IC LED DRIVER OFFL PWM 10SSOP
108.000Â â‚« STMicroelectronics
HVLED001ATR
IC LED DRIVER OFFL PWM 10SSOP
108.000Â â‚« STMicroelectronics
