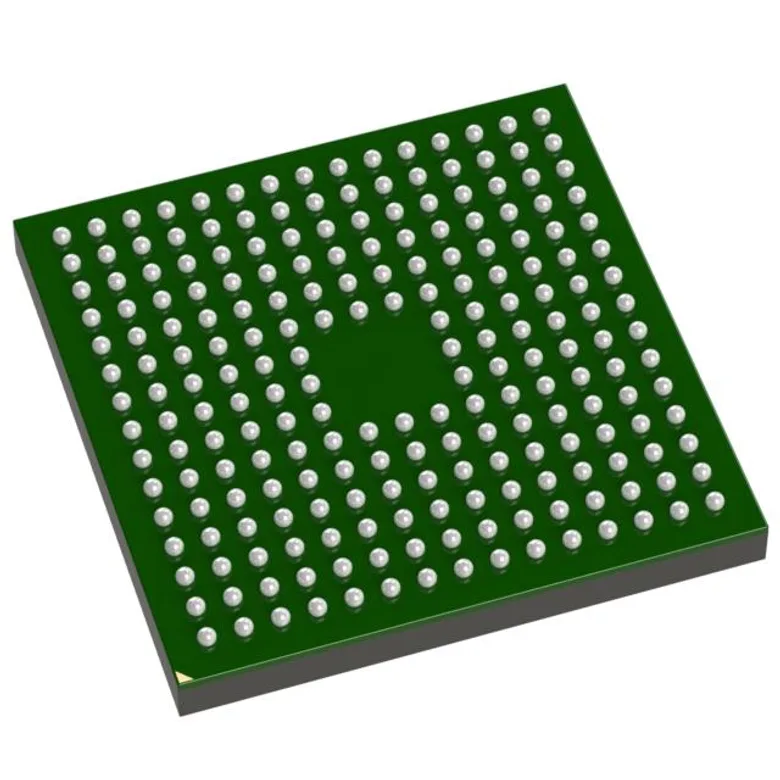

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STM32F746NGH6TR
Manufacturer
Manufacturer Product Number
STM32F746NGH6TR
Description
IC MCU 32BIT 1MB FLASH 216TFBGA
Manufacturer Standard Lead Time Contact us
Detailed Description
ARM® Cortex®-M7 STM32F7 Microcontroller IC 32-Bit 216MHz 1MB (1M x 8) FLASH 216-TFBGA (13x13)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Number of I/O
168
Operating Temperature
-40°C ~ 85°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
-
Core Processor
ARM® Cortex®-M7
Data Converters
A/D 24x12b; D/A 2x12b
Core Size
32-Bit
Mounting Type
Surface Mount
Supplier Device Package
216-TFBGA (13x13)
Speed
216MHz
Program Memory Size
1MB (1M x 8)
RAM Size
320K x 8
Package / Case
216-TFBGA
Voltage - Supply (Vcc/Vdd)
1.7V ~ 3.6V
Connectivity
CANbus, EBI/EMI, Ethernet, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB OTG
Peripherals
Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
Videos
Additional Resources
Attribute
Description
Part Number Alias
STM32F746NGH6TR
9770437
STM32F746NGH6TR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 328.000 ₫ 328.000 ₫
328.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,600
328.000 ₫
524.800.000 ₫
MOQ 1,600 · Order multiple 1,600
