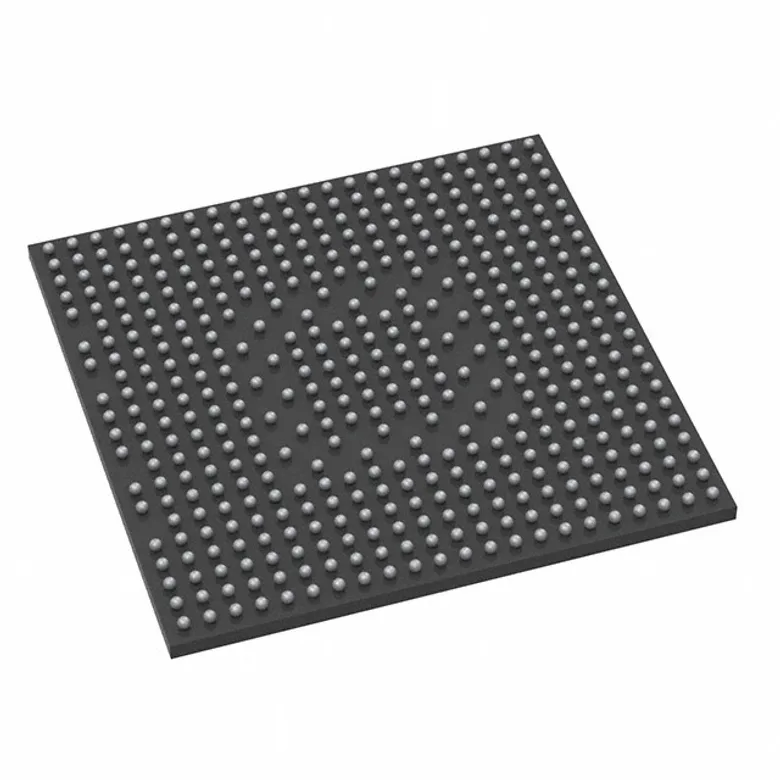

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STM32MP153FAA1
Manufacturer
Manufacturer Product Number
STM32MP153FAA1
Description
IC MPU STM32MP1 800MHZ 448LFBGA
Manufacturer Standard Lead Time Contact us
Detailed Description
ARM® Cortex®-A7 Microprocessor IC STM32MP1 2 Core, 32-Bit 209MHz, 800MHz 448-LFBGA (18x18)
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Operating Temperature
-20°C ~ 105°C (TJ)
Core Processor
ARM® Cortex®-A7
Mounting Type
Surface Mount
Voltage - I/O
2.5V, 3.3V
Supplier Device Package
448-LFBGA (18x18)
Speed
209MHz, 800MHz
Ethernet
10/100Mbps (1)
USB
USB 2.0 (2), USB 2.0 OTG+ PHY (3)
Package / Case
448-LFBGA
Number of Cores/Bus Width
2 Core, 32-Bit
Co-Processors/DSP
ARM® Cortex®-M4
RAM Controllers
DDR3, DDR3L, LPDDR2, LPDDR3
Graphics Acceleration
Yes
Display & Interface Controllers
HDMI-CEC, LCD
Security Features
ARM TZ
SATA
-
Additional Interfaces
CAN, Ethernet, I2C, MMC/SD/SDIO, SPDIF, SPI, UART, USB
Documents & Media
Resource Type
Link
Datasheets
Additional Resources
Attribute
Description
Part Number Alias
STM32MP153FAA1
11591085
497-STM32MP153FAA1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 231
Packaging Quantity Unit Price Ext Price
1 441.000 ₫ 441.000 ₫
441.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
441.000 ₫
441.000 ₫
10
350.000 ₫
3.500.000 ₫
84
305.000 ₫
25.620.000 ₫
168
295.000 ₫
49.560.000 ₫
252
290.000 ₫
73.080.000 ₫
504
283.000 ₫
142.632.000 ₫
MOQ 1 · Order multiple 1
