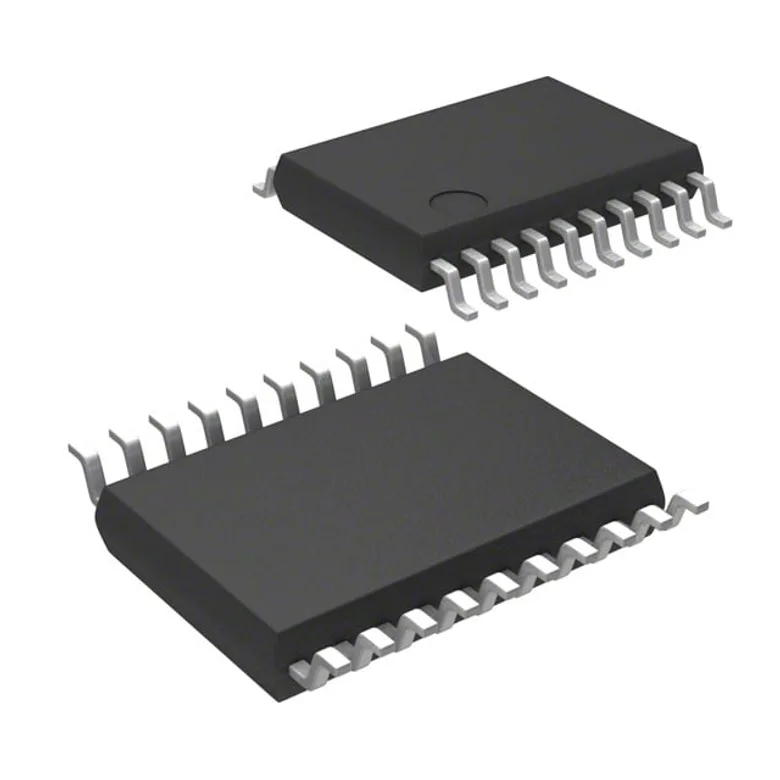

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STM8S003F3P6TR
Manufacturer
Manufacturer Product Number
STM8S003F3P6TR
Description
IC MCU 8BIT 8KB FLASH 20TSSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC MCU 8BIT 8KB FLASH 20TSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Number of I/O
16
Operating Temperature
-40°C ~ 85°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
128 x 8
Core Processor
STM8
Data Converters
A/D 5x10b
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
20-TSSOP
Speed
16MHz
Program Memory Size
8KB (8K x 8)
RAM Size
1K x 8
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Voltage - Supply (Vcc/Vdd)
2.95V ~ 5.5V
Connectivity
I2C, IrDA, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
STM8S003F3P6TR
8826920
497-18051-1-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 40
Packaging Quantity Unit Price Ext Price
1 19.000 ₫ 19.000 ₫
19.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
19.000 ₫
19.000 ₫
10
14.000 ₫
140.000 ₫
25
12.000 ₫
300.000 ₫
100
11.000 ₫
1.100.000 ₫
250
10.000 ₫
2.500.000 ₫
500
10.000 ₫
5.000.000 ₫
1,000
9.000 ₫
9.000.000 ₫
MOQ 1 · Order multiple 1
