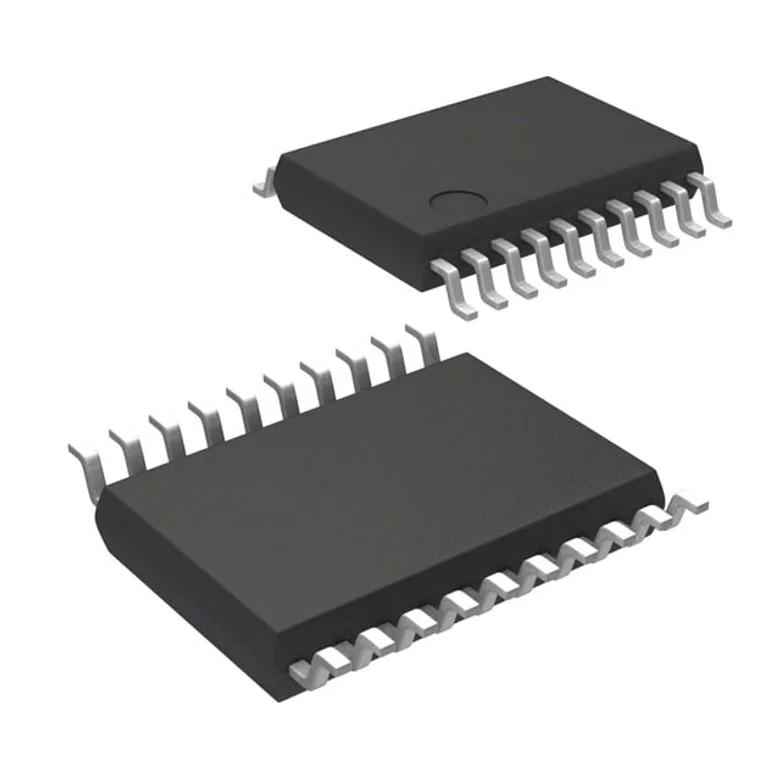

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STM8S103F2P3TR
Manufacturer
Manufacturer Product Number
STM8S103F2P3TR
Description
IC MCU 8BIT 4KB FLASH 20TSSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
STM8 STM8S Microcontroller IC 8-Bit 16MHz 4KB (4K x 8) FLASH 20-TSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Number of I/O
16
Operating Temperature
-40°C ~ 125°C (TA)
DigiKey Programmable
Not Verified
Oscillator Type
Internal
Program Memory Type
FLASH
EEPROM Size
640 x 8
Core Processor
STM8
Data Converters
A/D 5x10b
Core Size
8-Bit
Mounting Type
Surface Mount
Supplier Device Package
20-TSSOP
Speed
16MHz
Program Memory Size
4KB (4K x 8)
RAM Size
1K x 8
Package / Case
20-TSSOP (0.173", 4.40mm Width)
Voltage - Supply (Vcc/Vdd)
2.95V ~ 5.5V
Connectivity
I2C, IrDA, LINbus, SPI, UART/USART
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Reference Designs
Related Documents
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
STM8S103F2P3TR
9974358
497-19026-1-ND
497-19026-2-ND
497-19026-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 7,390
Packaging Quantity Unit Price Ext Price
1 50.000 ₫ 50.000 ₫
50.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
50.000 ₫
50.000 ₫
10
37.000 ₫
370.000 ₫
25
34.000 ₫
850.000 ₫
100
30.000 ₫
3.000.000 ₫
250
29.000 ₫
7.250.000 ₫
500
28.000 ₫
14.000.000 ₫
1,000
27.000 ₫
27.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
26.000 ₫
65.000.000 ₫
5,000
25.000 ₫
125.000.000 ₫
7,500
25.000 ₫
187.500.000 ₫
MOQ 2,500 · Order multiple 2,500
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
50.000 ₫
50.000 ₫
10
37.000 ₫
370.000 ₫
25
34.000 ₫
850.000 ₫
100
30.000 ₫
3.000.000 ₫
250
29.000 ₫
7.250.000 ₫
500
28.000 ₫
14.000.000 ₫
1,000
27.000 ₫
27.000.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
STM8S103F2P3
IC MCU 8BIT 4KB FLASH 20TSSOP
50.000 ₫ STMicroelectronics
