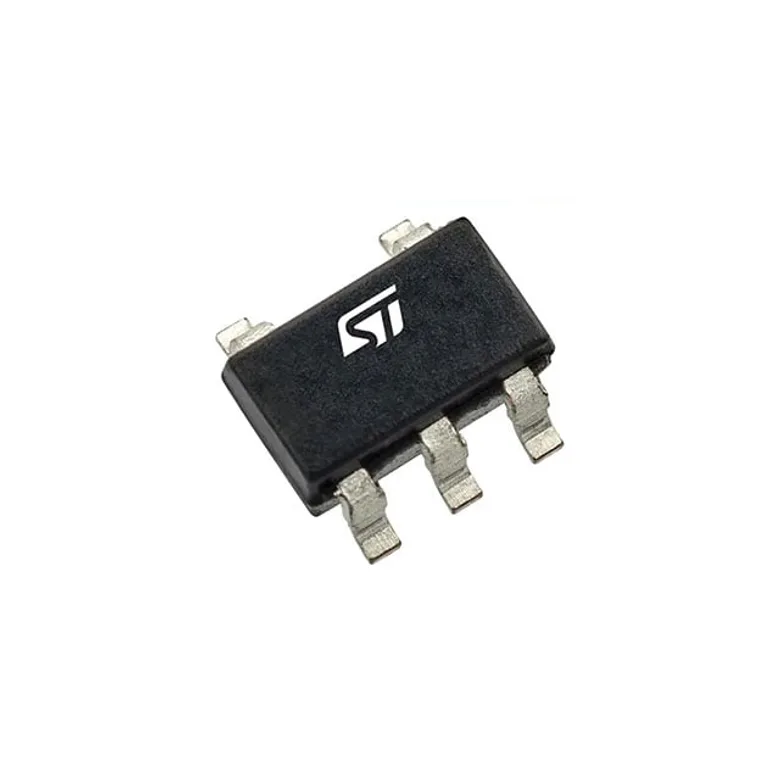

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STMPS2141STR
Manufacturer
Manufacturer Product Number
STMPS2141STR
Description
IC PWR SWITCH N-CHAN 1:1 SOT23-5
Manufacturer Standard Lead Time Contact us
Detailed Description
IC PWR SWITCH N-CHAN 1:1 SOT23-5
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Current - Output (Max)
500mA
Switch Type
General Purpose
Operating Temperature
-40°C ~ 125°C (TJ)
Output Configuration
High Side
Rds On (Typ)
90mOhm
Output Type
N-Channel
Input Type
Non-Inverting
Features
-
Mounting Type
Surface Mount
Voltage - Load
2.7V ~ 5.5V
Number of Outputs
1
Ratio - Input:Output
1:1
Supplier Device Package
SOT-23-5
Interface
On/Off
Package / Case
SC-74A, SOT-753
Fault Protection
Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO
Voltage - Supply (Vcc/Vdd)
Not Required
Documents & Media
Resource Type
Link
Datasheets
Related Documents
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
STMPS2141STR
1820091
497-6933-2-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 78,795
Packaging Quantity Unit Price Ext Price
1 10.000 ₫ 10.000 ₫
10.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
3,000
10.000 ₫
30.000.000 ₫
6,000
10.000 ₫
60.000.000 ₫
9,000
10.000 ₫
90.000.000 ₫
15,000
10.000 ₫
150.000.000 ₫
21,000
10.000 ₫
210.000.000 ₫
MOQ 3,000 · Order multiple 3,000
