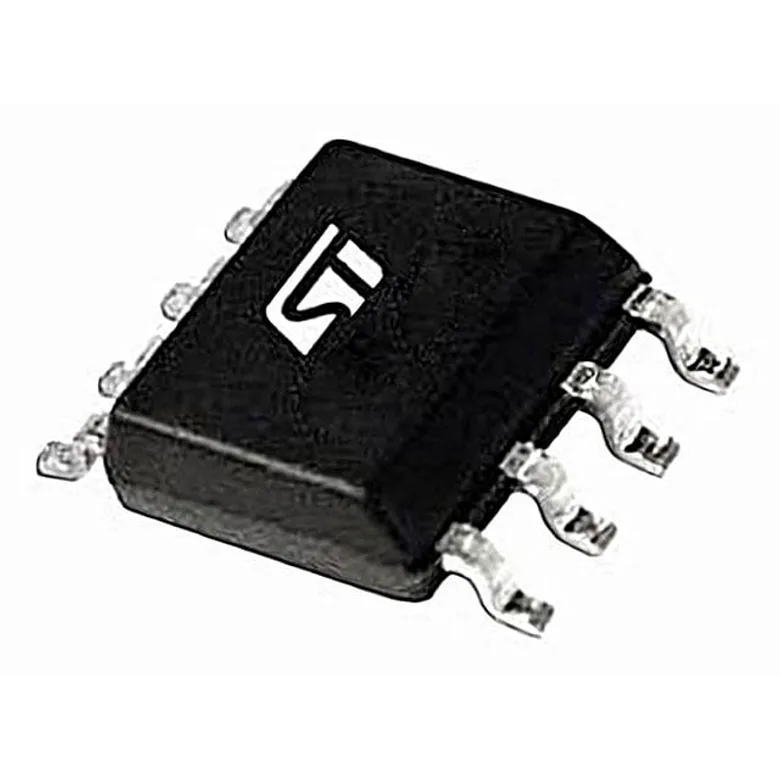

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics STS5NF60L
Manufacturer
Manufacturer Product Number
STS5NF60L
Description
MOSFET N-CH 60V 5A 8SO
Manufacturer Standard Lead Time Contact us
Detailed Description
N-Channel 60 V 5A (Tc) 2.5W (Tc) Surface Mount 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Gate Charge (Qg) (Max) @ Vgs
17 nC @ 5 V
Input Capacitance (Ciss) (Max) @ Vds
1250 pF @ 25 V
Operating Temperature
150°C (TJ)
Power Dissipation (Max)
2.5W (Tc)
Qualification
-
Technology
MOSFET (Metal Oxide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
5A (Tc)
Rds On (Max) @ Id, Vgs
55mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id
2.5V @ 250µA
Mounting Type
Surface Mount
FET Feature
-
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Vgs (Max)
±20V
Drain to Source Voltage (Vdss)
60 V
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Training Modules
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
STS5NF60L
1883680
497-8044-1-ND
497-8044-2-ND
497-8044-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 3,973
Packaging Quantity Unit Price Ext Price
1 37.000 ₫ 37.000 ₫
37.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
37.000 ₫
37.000 ₫
10
23.000 ₫
230.000 ₫
100
15.000 ₫
1.500.000 ₫
500
12.000 ₫
6.000.000 ₫
1,000
11.000 ₫
11.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
10.000 ₫
25.000.000 ₫
5,000
9.000 ₫
45.000.000 ₫
7,500
9.000 ₫
67.500.000 ₫
12,500
8.000 ₫
100.000.000 ₫
17,500
8.000 ₫
140.000.000 ₫
25,000
8.000 ₫
200.000.000 ₫
MOQ 2,500 · Order multiple 2,500
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
37.000 ₫
37.000 ₫
10
23.000 ₫
230.000 ₫
100
15.000 ₫
1.500.000 ₫
500
12.000 ₫
6.000.000 ₫
1,000
11.000 ₫
11.000.000 ₫
MOQ 1 · Order multiple 1
