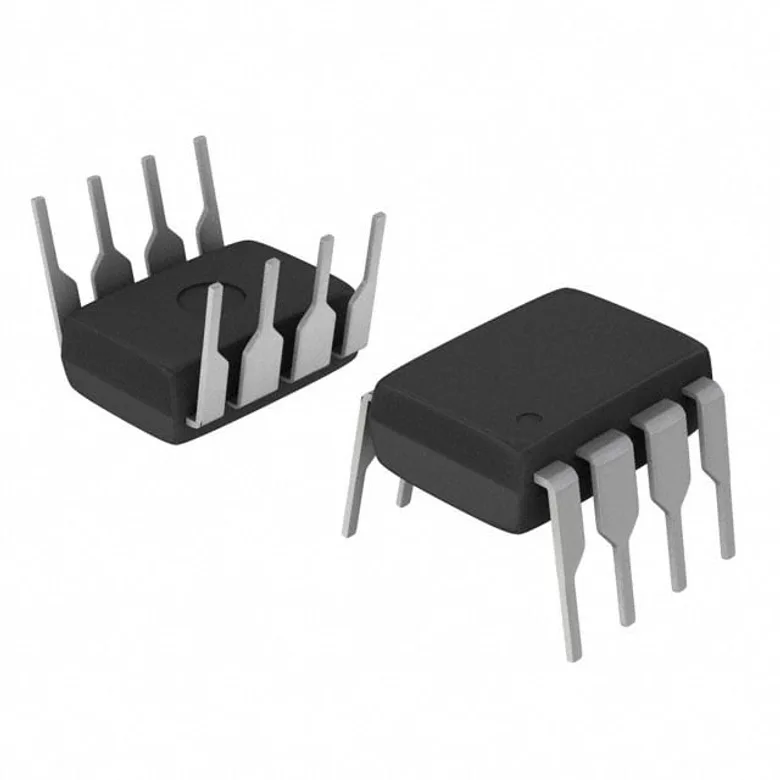

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics TDA8145
Manufacturer
Manufacturer Product Number
TDA8145
Description
IC VIDEO EAST/W CORRECT 8PWRDIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Video Deflector Circuit IC Analog Voltage 8-PowerDIP Package
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Control Interface
Analog Voltage
Voltage - Supply
17V ~ 30V
Applications
Professional Video
Standards
-
Mounting Type
Through Hole
Supplier Device Package
8-PowerDIP
Package / Case
8-DIP (0.300", 7.62mm)
Function
Deflector Circuit
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TDA8145
1665193
TDA8145-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 20.000Â â‚« 20.000Â â‚«
20.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
2,000
20.000Â â‚«
40.000.000Â â‚«
MOQ 2,000 · Order multiple 2,000
