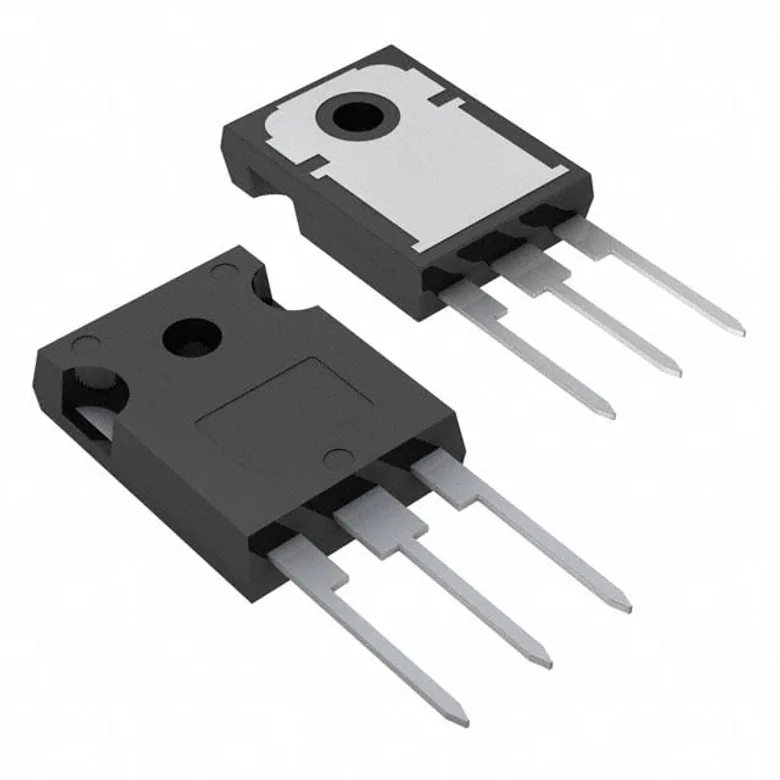

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics TIP147
Manufacturer
Manufacturer Product Number
TIP147
Description
TRANS PNP DARL 100V 10A TO-247
Manufacturer Standard Lead Time Contact us
Detailed Description
TRANS PNP DARL 100V 10A TO-247
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Operating Temperature
150°C (TJ)
Mounting Type
Through Hole
Transistor Type
PNP - Darlington
Vce Saturation (Max) @ Ib, Ic
3V @ 40mA, 10A
Current - Collector Cutoff (Max)
2mA
DC Current Gain (hFE) (Min) @ Ic, Vce
1000 @ 5A, 4V
Frequency - Transition
-
Supplier Device Package
TO-247
Package / Case
TO-247-3
Current - Collector (Ic) (Max)
10 A
Voltage - Collector Emitter Breakdown (Max)
100 V
Power - Max
125 W
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
TIP147
603594
497-2569-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,304
Packaging Quantity Unit Price Ext Price
1 56.000 ₫ 56.000 ₫
56.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
56.000 ₫
56.000 ₫
30
30.000 ₫
900.000 ₫
120
24.000 ₫
2.880.000 ₫
510
20.000 ₫
10.200.000 ₫
1,020
18.000 ₫
18.360.000 ₫
2,010
17.000 ₫
34.170.000 ₫
5,010
15.000 ₫
75.150.000 ₫
MOQ 1 · Order multiple 1
