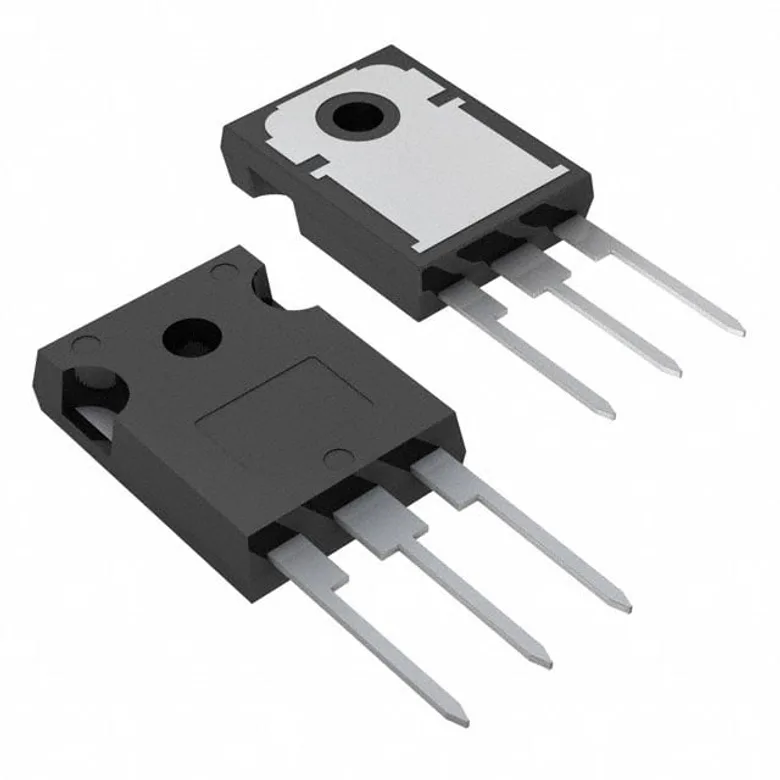

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics TIP3055
Manufacturer
Manufacturer Product Number
TIP3055
Description
TRANS NPN 60V 15A TO-247-3
Manufacturer Standard Lead Time Contact us
Detailed Description
TRANS NPN 60V 15A TO-247-3
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Operating Temperature
150°C (TJ)
Mounting Type
Through Hole
Transistor Type
NPN
Vce Saturation (Max) @ Ib, Ic
3V @ 3.3A, 10A
Current - Collector Cutoff (Max)
700µA
DC Current Gain (hFE) (Min) @ Ic, Vce
20 @ 4A, 4V
Frequency - Transition
-
Supplier Device Package
TO-247-3
Package / Case
TO-247-3
Current - Collector (Ic) (Max)
15 A
Voltage - Collector Emitter Breakdown (Max)
60 V
Power - Max
90 W
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
TIP3055
603611
497-2586-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2,069
Packaging Quantity Unit Price Ext Price
1 37.000 ₫ 37.000 ₫
37.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
37.000 ₫
37.000 ₫
30
19.000 ₫
570.000 ₫
120
15.000 ₫
1.800.000 ₫
510
12.000 ₫
6.120.000 ₫
1,020
11.000 ₫
11.220.000 ₫
2,010
10.000 ₫
20.100.000 ₫
5,010
9.000 ₫
45.090.000 ₫
10,020
9.000 ₫
90.180.000 ₫
MOQ 1 · Order multiple 1
