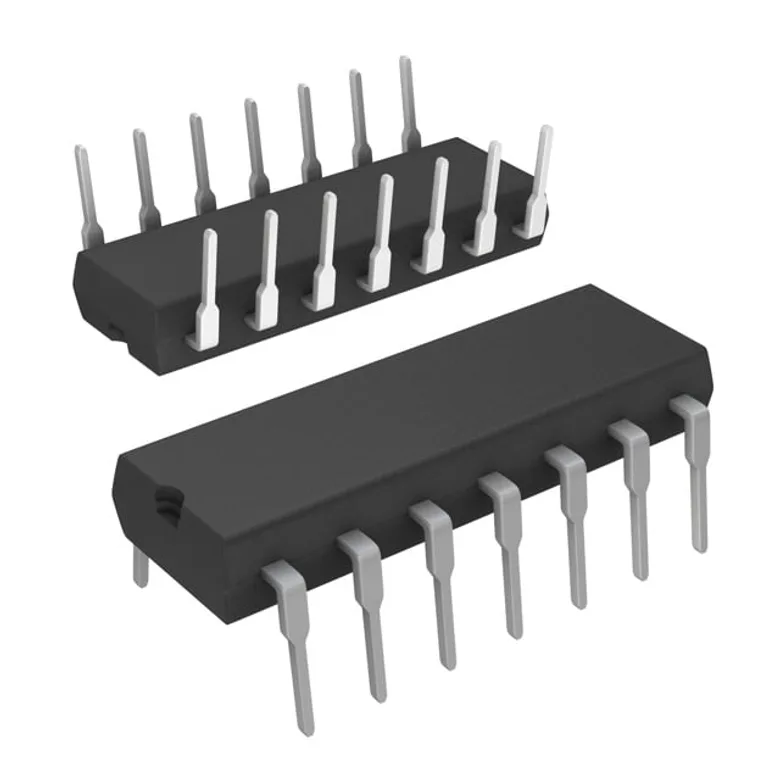

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics TS3704CN
Manufacturer
Manufacturer Product Number
TS3704CN
Description
IC COMPARATOR 4 GEN PUR 14DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
Comparator Standard (General Purpose) CMOS, Push-Pull 14-DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
Output Type
CMOS, Push-Pull
Voltage - Supply, Single/Dual (±)
2.7V ~ 16V, ±1.35V ~ 8V
Mounting Type
Through Hole
Supplier Device Package
14-DIP
Propagation Delay (Max)
-
Current - Quiescent (Max)
25µA
Voltage - Input Offset (Max)
5mV @ 10V
Current - Input Bias (Max)
1pA @ 5V
Current - Output (Typ)
20mA
CMRR, PSRR (Typ)
80dB CMRR
Hysteresis
-
Number of Elements
4
Package / Case
14-DIP (0.300", 7.62mm)
Type
Standard (General Purpose)
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TS3704CN
1040184
TS3704CN-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 17.000 ₫ 17.000 ₫
17.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
2,000
17.000 ₫
34.000.000 ₫
MOQ 2,000 · Order multiple 2,000
