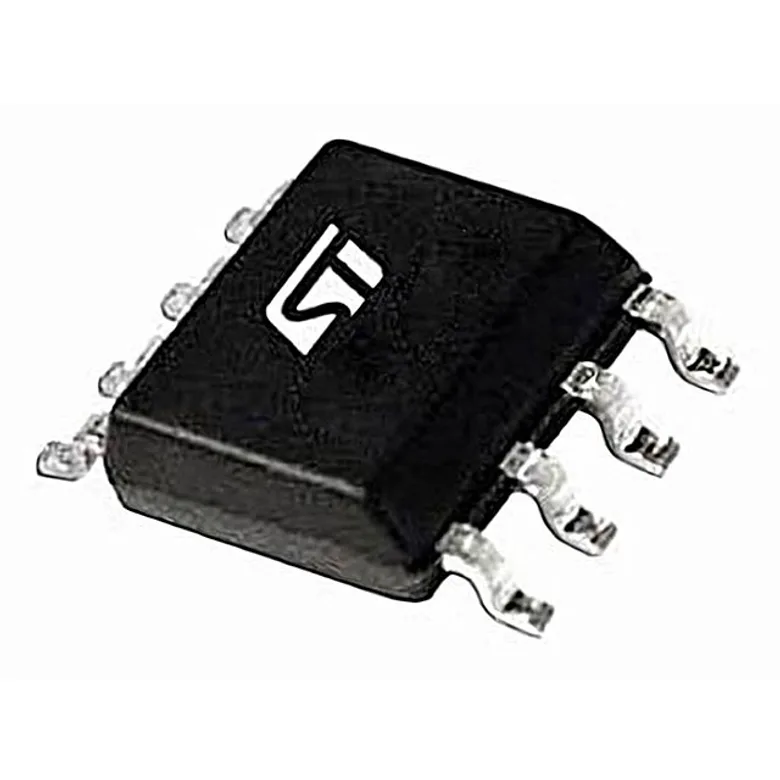

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics TSM109IDT
Manufacturer
Manufacturer Product Number
TSM109IDT
Description
IC COMPARATOR 2 W/VOLT REF 8SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC COMPARATOR 2 W/VOLT REF 8SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Product Status
Obsolete
Operating Temperature
-40°C ~ 105°C
Output Type
-
Voltage - Supply, Single/Dual (±)
2V ~ 36V, ±1V ~ 18V
Mounting Type
Surface Mount
Supplier Device Package
8-SOIC
Propagation Delay (Max)
-
Current - Quiescent (Max)
2.5mA
Voltage - Input Offset (Max)
5mV @ 5V
Current - Input Bias (Max)
0.25µA @ 5V
Current - Output (Typ)
20mA @ 5V
CMRR, PSRR (Typ)
-
Hysteresis
-
Number of Elements
2
Package / Case
8-SOIC (0.154", 3.90mm Width)
Type
with Voltage Reference
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TSM109IDT
1040521
497-19421-2-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 6.000 ₫ 6.000 ₫
6.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
5,000
6.000 ₫
30.000.000 ₫
7,500
6.000 ₫
45.000.000 ₫
12,500
6.000 ₫
75.000.000 ₫
17,500
6.000 ₫
105.000.000 ₫
25,000
6.000 ₫
150.000.000 ₫
MOQ 5,000 · Order multiple 5,000
