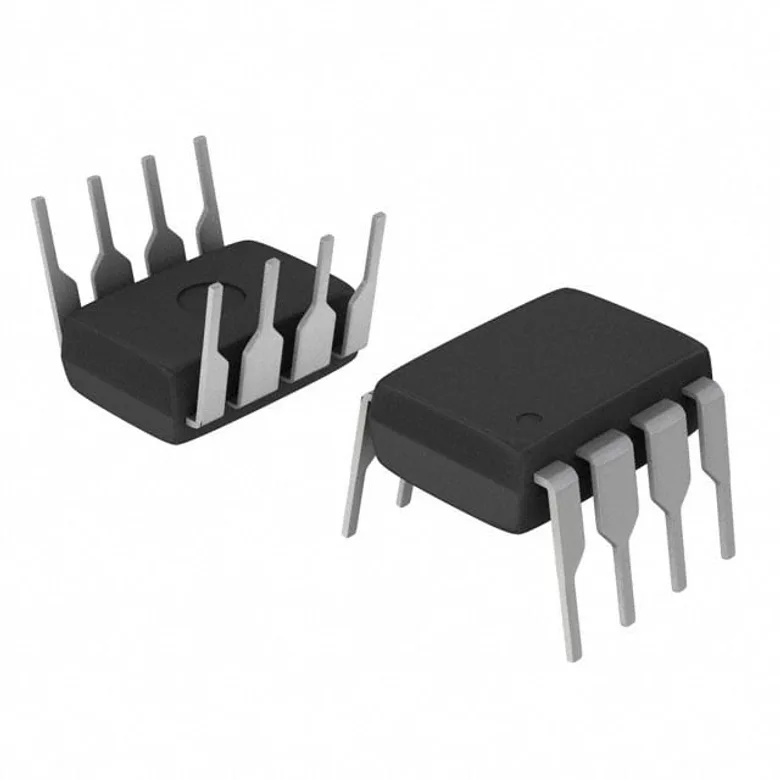

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
STMicroelectronics VIPER22ADIP-E
Manufacturer
Manufacturer Product Number
VIPER22ADIP-E
Description
IC OFFLINE SWITCH FLYBACK 8DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
IC OFFLINE SWITCH FLYBACK 8DIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
STMicroelectronics
Power (Watts)
12 W
Operating Temperature
-40°C ~ 150°C (TC)
Duty Cycle
-
Frequency - Switching
60kHz
Internal Switch(s)
Yes
Mounting Type
Through Hole
Voltage - Breakdown
730V
Output Isolation
Isolated
Supplier Device Package
8-DIP
Package / Case
8-DIP (0.300", 7.62mm)
Fault Protection
Current Limiting, Over Temperature, Over Voltage
Voltage - Start Up
14.5 V
Control Features
-
Topology
Flyback
Voltage - Supply (Vcc/Vdd)
8V ~ 38V
Documents & Media
Resource Type
Link
Datasheets
Reference Designs
Related Documents
Additional Resources
Attribute
Description
Part Number Alias
VIPER22ADIP-E
1852690
497-7694-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 268
Packaging Quantity Unit Price Ext Price
1 30.000 ₫ 30.000 ₫
30.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
30.000 ₫
30.000 ₫
10
22.000 ₫
220.000 ₫
50
18.000 ₫
900.000 ₫
100
17.000 ₫
1.700.000 ₫
250
16.000 ₫
4.000.000 ₫
500
16.000 ₫
8.000.000 ₫
1,000
15.000 ₫
15.000.000 ₫
2,500
15.000 ₫
37.500.000 ₫
5,000
14.000 ₫
70.000.000 ₫
MOQ 1 · Order multiple 1
