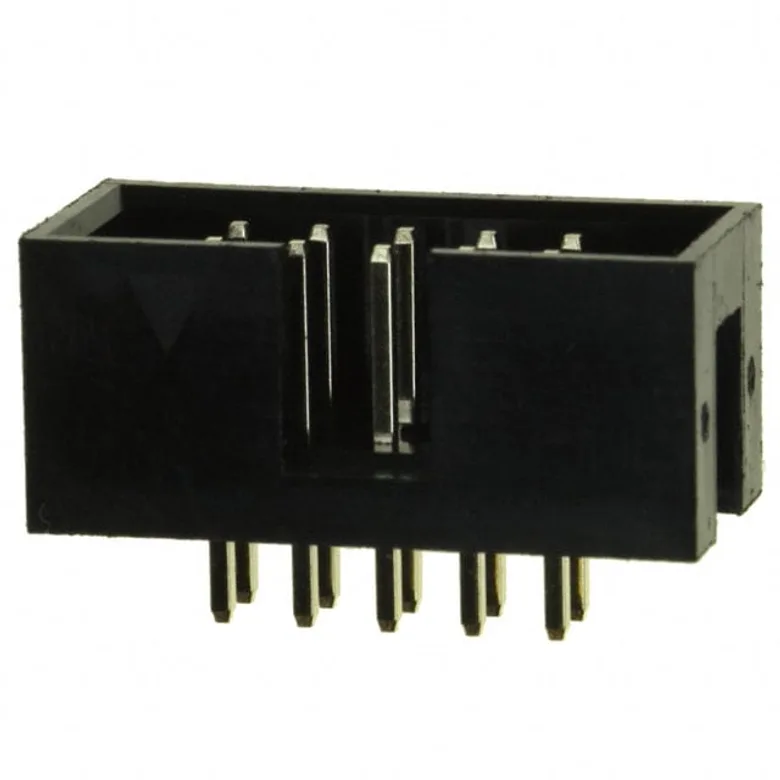

Sullins Connector Solutions SBH11-PBPC-D05-ST-BK
Manufacturer
Manufacturer Product Number
SBH11-PBPC-D05-ST-BK
Description
CONN HEADER VERT 10POS 2.54MM
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN HEADER VERT 10POS 2.54MM
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Sullins Connector Solutions
Operating Temperature
-40°C ~ 105°C
Connector Type
Header
Applications
-
Features
Keying Slot
Contact Type
Male Pin
Fastening Type
Push-Pull
Number of Positions Loaded
All
Termination
Solder
Voltage Rating
-
Current Rating (Amps)
3A
Mounting Type
Through Hole
Ingress Protection
-
Mated Stacking Heights
9.65mm, 11.2mm, 13.35mm, 18.35mm
Number of Positions
10
Number of Rows
2
Material Flammability Rating
UL94 V-0
Style
Board to Board or Cable
Insulation Color
Black
Pitch - Mating
0.100" (2.54mm)
Contact Finish - Mating
Gold
Contact Finish Thickness - Mating
Flash
Contact Finish - Post
Gold
Contact Finish Thickness - Post
Flash
Contact Material
Brass
Contact Shape
Square
Contact Length - Post
0.118" (3.00mm)
Insulation Height
0.358" (9.10mm)
Shrouding
Shrouded - 4 Wall
Overall Contact Length
-
Insulation Material
Polybutylene Terephthalate (PBT)
Row Spacing - Mating
0.100" (2.54mm)
Contact Length - Mating
-
Documents & Media
Resource Type
Link
EDA Models
Training Modules
Environmental Information
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
SBH11-PBPC-D05-ST-BK
1990062
S9169-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 188,148
