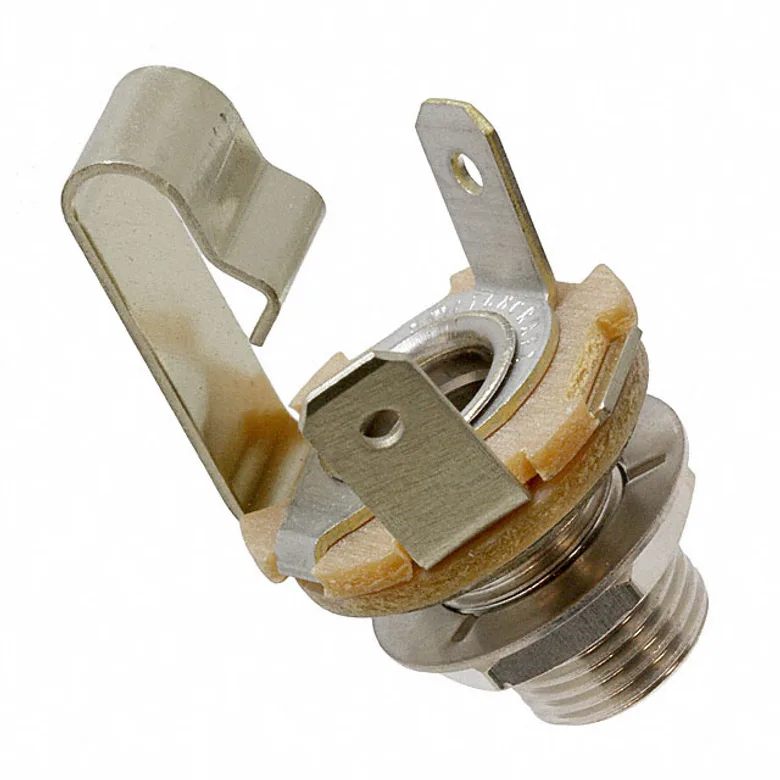

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Switchcraft Inc. FAL11
Manufacturer
Manufacturer Product Number
FAL11
Description
CONN JACK MONO 6.35MM PNL MNT
Manufacturer Standard Lead Time Contact us
Detailed Description
CONN JACK MONO 6.35MM PNL MNT
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Switchcraft Inc.
Operating Temperature
-20°C ~ 65°C
Panel Hole Size
0.375" (9.52mm)
Number of Positions/Contacts
2 Conductors, 2 Contacts
Connector Type
Phone Jack
Gender
Female
Thread Size
3/8"-32
Features
Mounting Hardware, Thread Lock
Internal Switch(s)
Does Not Contain Switch
Signal Lines
Mono
Termination
Solder Eyelet(s)
Includes
3 pcs - 1 Connector, 1 Nut, 1 Washer
Mounting Type
Panel Mount
Shielding
Unshielded
Cable Opening
-
Housing Material
-
Body Material
Copper Alloy
Voltage - Rated
25VDC
Body Color
Silver
Contact Material - Plating
Nickel
Insulation Color
-
Contact Material
Copper Alloy
Actual Diameter
0.250" (6.35mm)
Mating Length/Depth
-
Industry Recognized Mating Diameter
6.35mm (0.250", 1/4") - Headphone
Current Rating (Amps)
1 A
Documents & Media
Resource Type
Link
Drawings
Interactive Media
Videos
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
FAL11
1289066
SC1847-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 940
Packaging Quantity Unit Price Ext Price
1 154.000 ₫ 154.000 ₫
154.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
1
154.000 ₫
154.000 ₫
10
131.000 ₫
1.310.000 ₫
25
123.000 ₫
3.075.000 ₫
50
117.000 ₫
5.850.000 ₫
100
111.000 ₫
11.100.000 ₫
300
103.000 ₫
30.900.000 ₫
500
99.000 ₫
49.500.000 ₫
1,000
95.000 ₫
95.000.000 ₫
2,500
89.000 ₫
222.500.000 ₫
MOQ 1 · Order multiple 1
