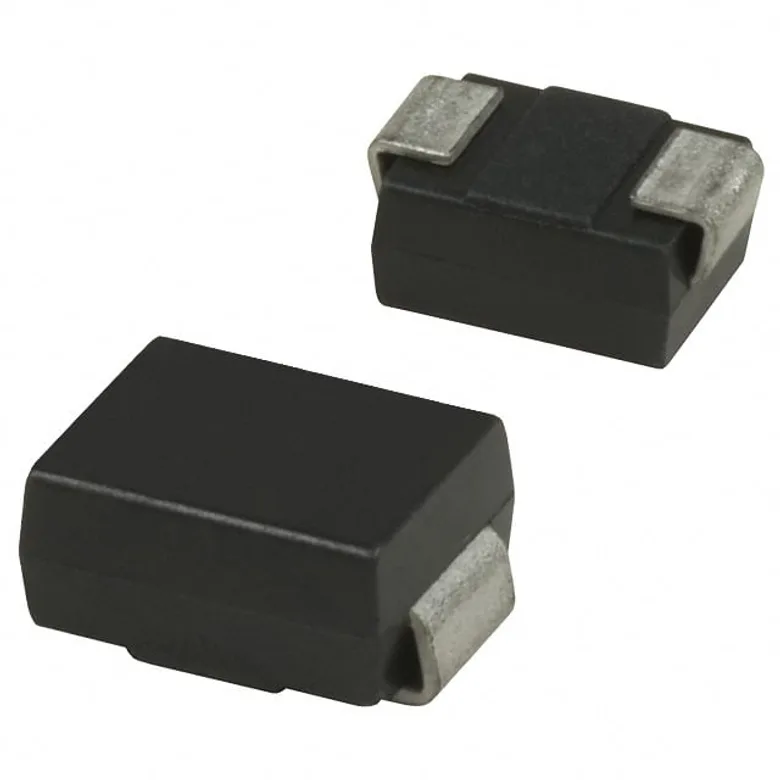

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Taiwan Semiconductor Corporation SMBJ48A
Manufacturer
Manufacturer Product Number
SMBJ48A
Description
TVS DIODE 48VWM 77.4VC DO214AA
Manufacturer Standard Lead Time Contact us
Detailed Description
TVS DIODE 48VWM 77.4VC DO214AA
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Taiwan Semiconductor Corporation
Operating Temperature
-55°C ~ 150°C (TJ)
Applications
General Purpose
Capacitance @ Frequency
-
Mounting Type
Surface Mount
Current - Peak Pulse (10/1000µs)
7.8A
Voltage - Reverse Standoff (Typ)
48V
Supplier Device Package
DO-214AA (SMB)
Package / Case
DO-214AA, SMB
Unidirectional Channels
1
Voltage - Breakdown (Min)
53.3V
Voltage - Clamping (Max) @ Ipp
77.4V
Power - Peak Pulse
600W
Power Line Protection
No
Type
-
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Simulation Models
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
SMBJ48A
1049559
SMBJ48AFSCT-ND
SMBJ48AFSDKR-ND
SMBJ48AFSTR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 6,589
Packaging Quantity Unit Price Ext Price
1 17.000 ₫ 17.000 ₫
17.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
17.000 ₫
17.000 ₫
10
11.000 ₫
110.000 ₫
100
7.000 ₫
700.000 ₫
500
5.000 ₫
2.500.000 ₫
1,000
5.000 ₫
5.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
17.000 ₫
17.000 ₫
10
11.000 ₫
110.000 ₫
100
7.000 ₫
700.000 ₫
500
5.000 ₫
2.500.000 ₫
1,000
5.000 ₫
5.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
3,000
4.000 ₫
12.000.000 ₫
6,000
4.000 ₫
24.000.000 ₫
9,000
4.000 ₫
36.000.000 ₫
15,000
4.000 ₫
60.000.000 ₫
21,000
3.000 ₫
63.000.000 ₫
30,000
3.000 ₫
90.000.000 ₫
MOQ 3,000 · Order multiple 3,000
Substitutes
SMBJ48A-TR
TVS DIODE 48VWM 77.4VC SMB
3.000 ₫ STMicroelectronics
