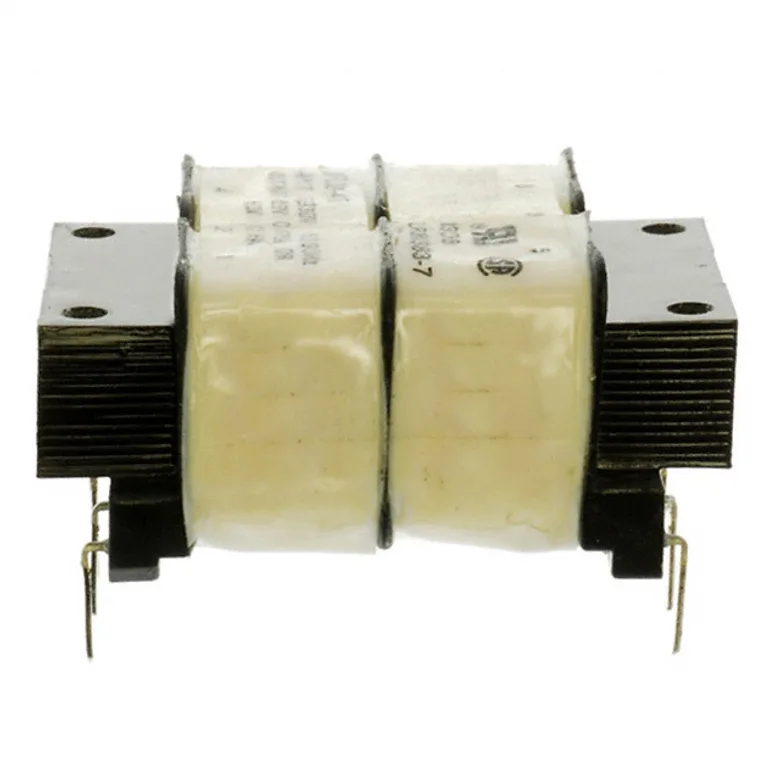

Tamura 3FL20-300
Manufacturer
Manufacturer Product Number
3FL20-300
Description
PWR XFMR LAMINATED 6VA TH
Manufacturer Standard Lead Time Contact us
Detailed Description
PWR XFMR LAMINATED 6VA TH
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Tamura
Current - Output (Max)
Parallel 600mA, Series 300mA
Termination Style
PC Pin
Size / Dimension
47.60mm L x 39.60mm W
Primary Winding(s)
Dual
Secondary Winding(s)
Dual
Power - Max
6VA
Voltage - Isolation
1500Vrms
Mounting Type
Through Hole
Voltage - Primary
115V, 230V
Height - Seated (Max)
21.60mm
Voltage - Secondary (Full Load)
Parallel 10V, Series 20V
Center Tap
No
Type
Laminated Core
Weight
-
Documents & Media
Resource Type
Link
Datasheets
Interactive Media
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
3FL20-300
98189
MT1114-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 360
Packaging Quantity Unit Price Ext Price
1 377.000Â â‚« 377.000Â â‚«
377.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
377.000Â â‚«
377.000Â â‚«
10
339.000Â â‚«
3.390.000Â â‚«
25
326.000Â â‚«
8.150.000Â â‚«
90
307.000Â â‚«
27.630.000Â â‚«
180
297.000Â â‚«
53.460.000Â â‚«
270
292.000Â â‚«
78.840.000Â â‚«
540
283.000Â â‚«
152.820.000Â â‚«
MOQ 1 · Order multiple 1
Substitutes
LP-20-300
PWR XFMR SEMI-TORO 6VA TH
461.000Â â‚« Signal Transformer
FP20-300
PWR XFMR LAMINATED 6VA TH
333.000Â â‚« Triad Magnetics
