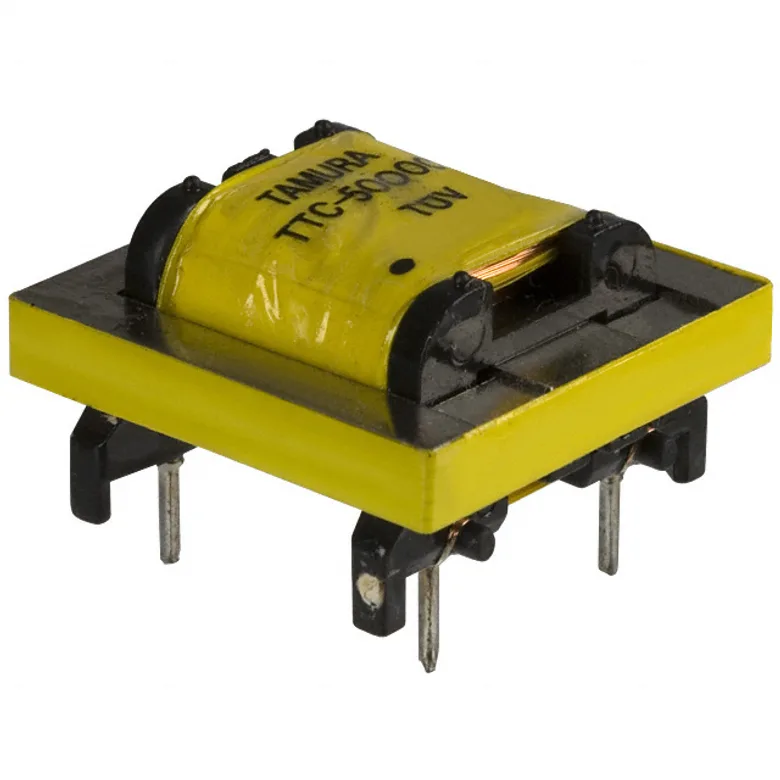

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Tamura TTC-5000
Manufacturer
Manufacturer Product Number
TTC-5000
Description
AUDIO XFMR 600 / 301 TH
Manufacturer Standard Lead Time Contact us
Detailed Description
600 Impedance Primary Ohms 301 Impedance Secondary Ohms 1:1 Audio Transformer 200Hz ~ 4kHz Through Hole
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Tamura
Product Status
Obsolete
Return Loss
20dB Min @ 1kHz
Operating Temperature
-
Termination Style
PC Pin
Transformer Type
Data/Voice Coupling
Turns Ratio - Primary:Secondary
1:1
Insertion Loss
3.25dB Max @ 1kHz
Frequency Range
200Hz ~ 4kHz
Size / Dimension
0.886" L x 0.909" W (22.50mm x 23.10mm)
Voltage - Isolation
1875VRMS @ 1 Second
Approval Agency
UL1950, UL60950, EN60950
Mounting Type
Through Hole
Height - Seated (Max)
0.543" (13.80mm)
Impedance - Primary (Ohms)
600
Impedance - Secondary (Ohms)
301
DC Resistance (DCR) - Primary
150Ohm
DC Resistance (DCR) - Secondary
150Ohm
Frequency Response
±0.25dB
Power Level
-
Weight
-
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
TTC-5000
569332
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
