Image shown is representative only. Exact specifications should be obtained from the product datasheet.

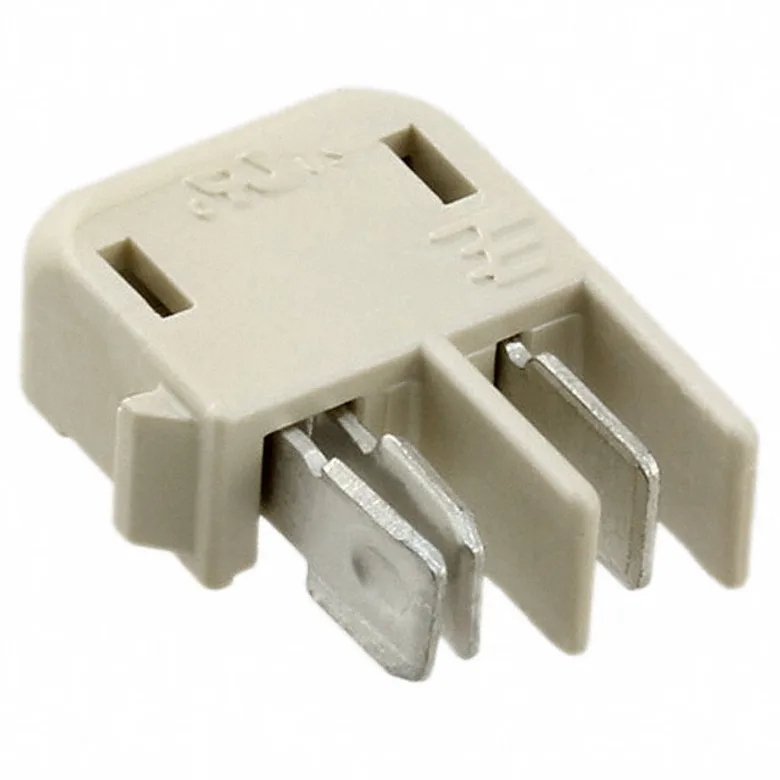

TE Connectivity AMP Connectors 2154640-1
Manufacturer
Manufacturer Product Number
2154640-1
Description
CONN SSL RCPT & BLADE 2POS 4MM
Manufacturer Standard Lead Time Contact us
Detailed Description
SSL Connector 2 Position Blade and Receptacle, Hermaphroditic Board to Board 0.157" (4.00mm) Solder
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
TE Connectivity AMP Connectors
Number of Positions
2
Operating Temperature
-40°C ~ 105°C
Connector Type
Blade and Receptacle, Hermaphroditic
Contact Finish
Tin
Features
-
Fastening Type
Locking Ramp
Termination
Solder
Voltage Rating
125V
Current Rating (Amps)
6A
Mounting Type
Board Edge, Surface Mount, Right Angle
Ingress Protection
-
Wire Gauge
-
Pitch
0.157" (4.00mm)
Style
Board to Board
Housing Material
Liquid Crystal Polymer (LCP)
Housing Color
Natural
Mating Cycles
-
Contact Material
Copper Alloy
Documents & Media
Resource Type
Link
Datasheets
CAD Models
EDA Models
Design Resources
Reliability Documents
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
2154640-1
4898648
A119755CT-ND
A119755TR-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 10,823
Packaging Quantity Unit Price Ext Price
1 25.000 ₫ 25.000 ₫
25.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
25.000 ₫
25.000 ₫
10
22.000 ₫
220.000 ₫
25
20.000 ₫
500.000 ₫
50
19.000 ₫
950.000 ₫
100
18.000 ₫
1.800.000 ₫
250
17.000 ₫
4.250.000 ₫
500
16.000 ₫
8.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
1,000
16.000 ₫
16.000.000 ₫
2,000
16.000 ₫
32.000.000 ₫
3,000
15.000 ₫
45.000.000 ₫
5,000
15.000 ₫
75.000.000 ₫
7,000
14.000 ₫
98.000.000 ₫
10,000
14.000 ₫
140.000.000 ₫
MOQ 1,000 · Order multiple 1,000
