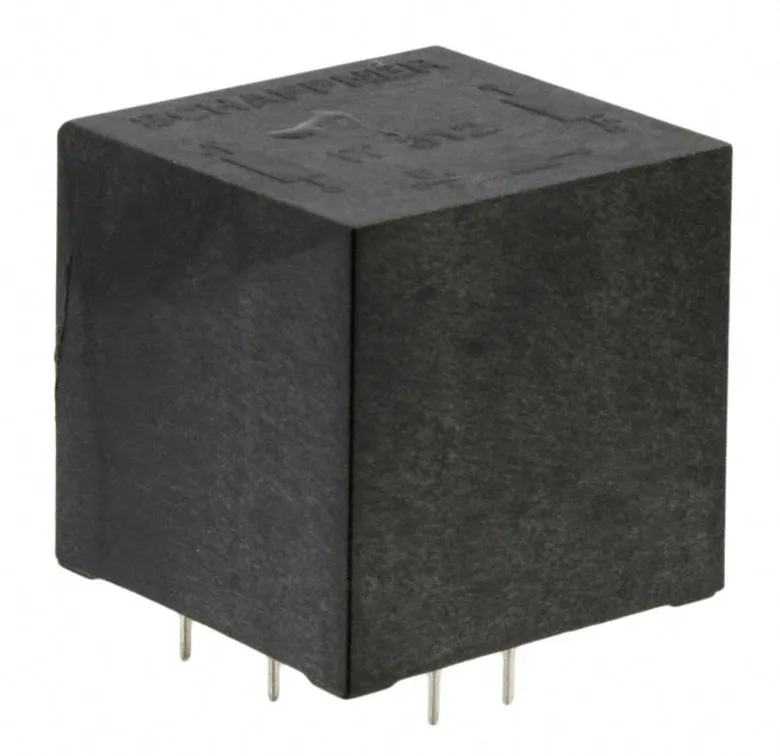

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
TE Connectivity Schaffner IT313
Manufacturer
Manufacturer Product Number
IT313
Description
XFRMR PULSE 1:1:1 DL 3MH 1A
Manufacturer Standard Lead Time Contact us
Detailed Description
XFRMR PULSE 1:1:1 DL 3MH 1A
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
TE Connectivity Schaffner
Operating Temperature
-25°C ~ 70°C
Transformer Type
Data/Voice Coupling
Turns Ratio - Primary:Secondary
1:1:1
ET (Volt-Time)
-
Size / Dimension
1.004" L x 1.004" W (25.50mm x 25.50mm)
Mounting Type
Through Hole
Height - Seated (Max)
0.992" (25.20mm)
Inductance
3mH
Weight
0.85 oz (24.22 g)
Documents & Media
Resource Type
Link
Datasheets
Environmental Information
Additional Resources
Attribute
Description
Part Number Alias
IT313
1929103
817-1522-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 34
Packaging Quantity Unit Price Ext Price
1 446.000 ₫ 446.000 ₫
446.000 ₫
All prices are shown in the selected currency
Tray · Digikey
Quantity Unit Price Ext Price
1
446.000 ₫
446.000 ₫
10
402.000 ₫
4.020.000 ₫
25
385.000 ₫
9.625.000 ₫
50
373.000 ₫
18.650.000 ₫
100
361.000 ₫
36.100.000 ₫
300
343.000 ₫
102.900.000 ₫
500
335.000 ₫
167.500.000 ₫
MOQ 1 · Order multiple 1
