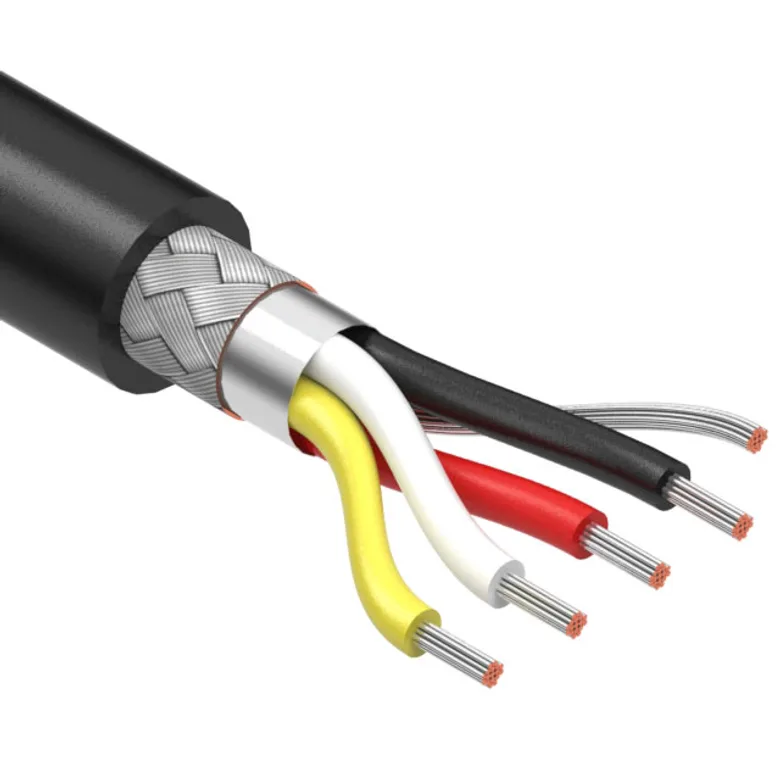

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Tensility International Corp 30-01029
Manufacturer
Manufacturer Product Number
30-01029
Description
CABLE 4COND 22AWG BLK SHLD 502'
Manufacturer Standard Lead Time Contact us
Detailed Description
CABLE 4COND 22AWG BLK SHLD 502'
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Tensility International Corp
Voltage
300 V
Operating Temperature
-25°C ~ 80°C
Qualification
-
Number of Conductors
4
Cable Type
Multi-Conductor
Jacket (Insulation) Diameter
0.220" (5.59mm)
Usage
-
Features
Drain Wire
Conductor Insulation
Poly-Vinyl Chloride (PVC)
Ratings
UL Style 2464
Length
502.0' (153.0m)
Wire Gauge
22 AWG
Jacket (Insulation) Material
Poly-Vinyl Chloride (PVC)
Conductor Strand
17/0.0063"
Jacket (Insulation) Thickness
0.0315" (0.800mm)
Shield Coverage
80%
Shield Material
Aluminum; Copper, Tinned
Shield Type
Foil, Braid
Conductor Material
Copper, Tinned
Grade
-
Jacket Color
Black
Documents & Media
Additional Resources
Attribute
Description
Part Number Alias
30-01029
9607473
839-30-01029-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 19
Packaging Quantity Unit Price Ext Price
1 11.573.000 ₫ 11.573.000 ₫
11.573.000 ₫
All prices are shown in the selected currency
Spool · Digikey
Quantity Unit Price Ext Price
1
11.573.000 ₫
11.573.000 ₫
2
11.004.000 ₫
22.008.000 ₫
3
10.681.000 ₫
32.043.000 ₫
5
10.435.000 ₫
52.175.000 ₫
MOQ 1 · Order multiple 1
Alternate Length
30-01029
CABLE 4COND 22AWG BLK SHLD 30M
30-01029
CABLE 4COND 22AWG BLACK SHLD 1M
157.000 ₫ Tensility International Corp
30-01029
CABLE 4COND 22AWG BLACK SHLD 5M
30-01029
CABLE 4COND 22AWG BLK SHLD METER
185.000 ₫ Tensility International Corp
