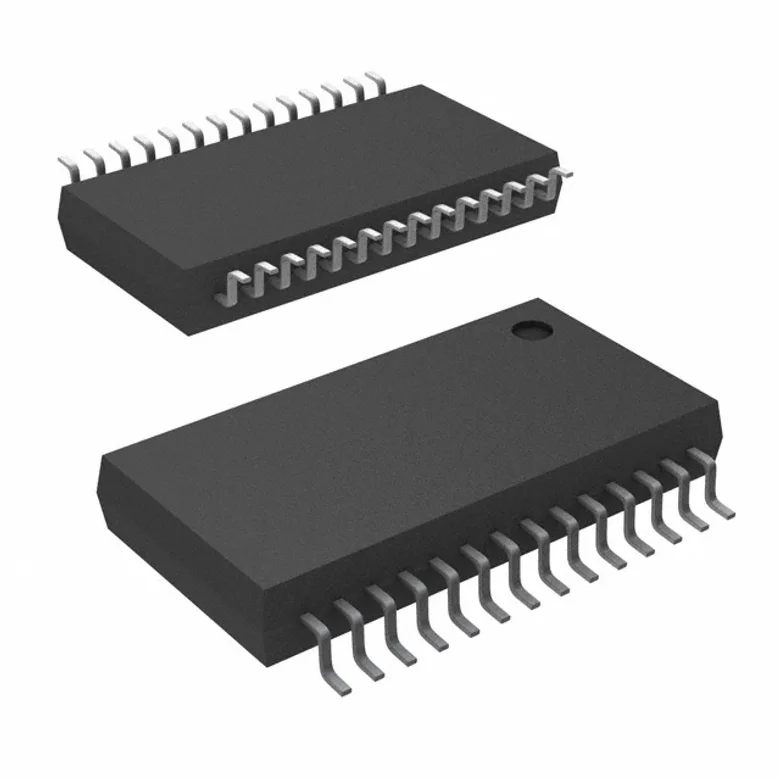

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments AFE1224E
Manufacturer
Manufacturer Product Number
AFE1224E
Description
IC AFE 1 CHAN 14BIT 28SSOP
Manufacturer Standard Lead Time 10 Days
Detailed Description
1 Channel AFE 14 Bit 385 mW 28-SSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Power (Watts)
385 mW
Voltage - Supply, Analog
5V
Voltage - Supply, Digital
3.15V ~ 5.25V
Mounting Type
Surface Mount
Supplier Device Package
28-SSOP
Number of Bits
14
Package / Case
28-SSOP (0.209", 5.30mm Width)
Number of Channels
1
Documents & Media
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
AFE1224E
11540759
2156-AFE1224E-TI-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 571
Packaging Quantity Unit Price Ext Price
1 327.000Â â‚« 327.000Â â‚«
327.000Â â‚«
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
24
327.000Â â‚«
7.848.000Â â‚«
MOQ 24 · Order multiple 24
