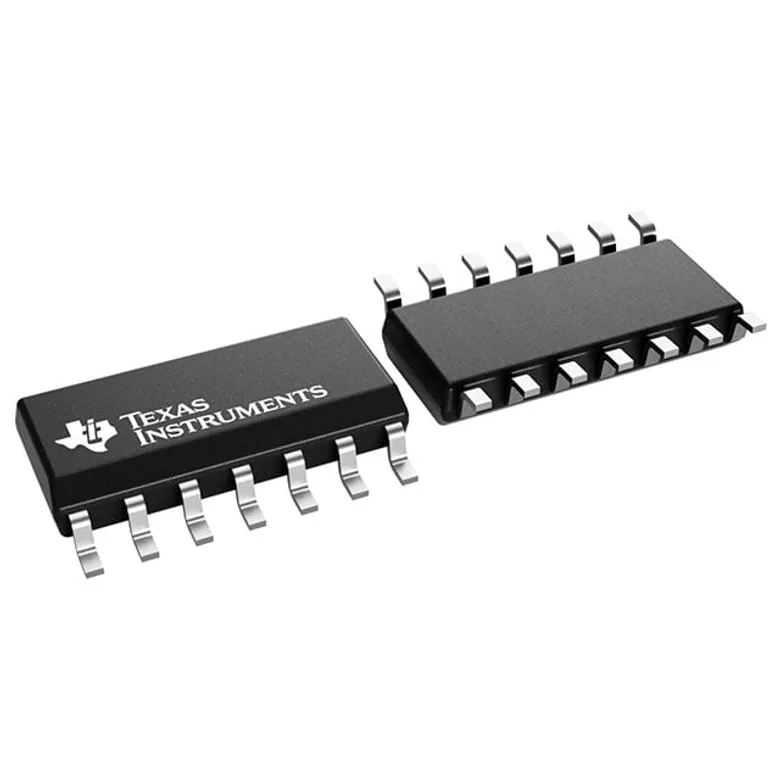

Texas Instruments CD4011BMT
Manufacturer
Manufacturer Product Number
CD4011BMT
Description
IC GATE NAND 4CH 2-INP 14SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
IC GATE NAND 4CH 2-INP 14SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Logic Type
NAND Gate
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
3V ~ 18V
Features
-
Current - Output High, Low
3.4mA, 3.4mA
Number of Inputs
2
Mounting Type
Surface Mount
Supplier Device Package
14-SOIC
Input Logic Level - High
3.5V ~ 11V
Input Logic Level - Low
1.5V ~ 4V
Max Propagation Delay @ V, Max CL
90ns @ 15V, 50pF
Package / Case
14-SOIC (0.154", 3.90mm Width)
Number of Circuits
4
Current - Quiescent (Max)
1 µA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
CD4011BMT
1690690
296-CD4011BMTTR-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 14.000 ₫ 14.000 ₫
14.000 ₫
All prices are shown in the selected currency
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
750
14.000 ₫
10.500.000 ₫
1,250
13.000 ₫
16.250.000 ₫
1,750
13.000 ₫
22.750.000 ₫
2,500
13.000 ₫
32.500.000 ₫
6,250
13.000 ₫
81.250.000 ₫
12,500
12.000 ₫
150.000.000 ₫
MOQ 750 · Order multiple 750
Substitutes
MC14011BDG
IC GATE NAND 4CH 2-INP 14SOIC
15.000 ₫ onsemi
CD4011BME4
IC GATE NAND 4CH 2-INP 14SOIC
29.000 ₫ Texas Instruments
MC14011UBDG
IC GATE NAND 4CH 2-INP 14SOIC
12.000 ₫ onsemi
HEF4011BT,653
IC GATE NAND 4CH 2-INP 14SO
4.000 ₫ Nexperia USA Inc.
