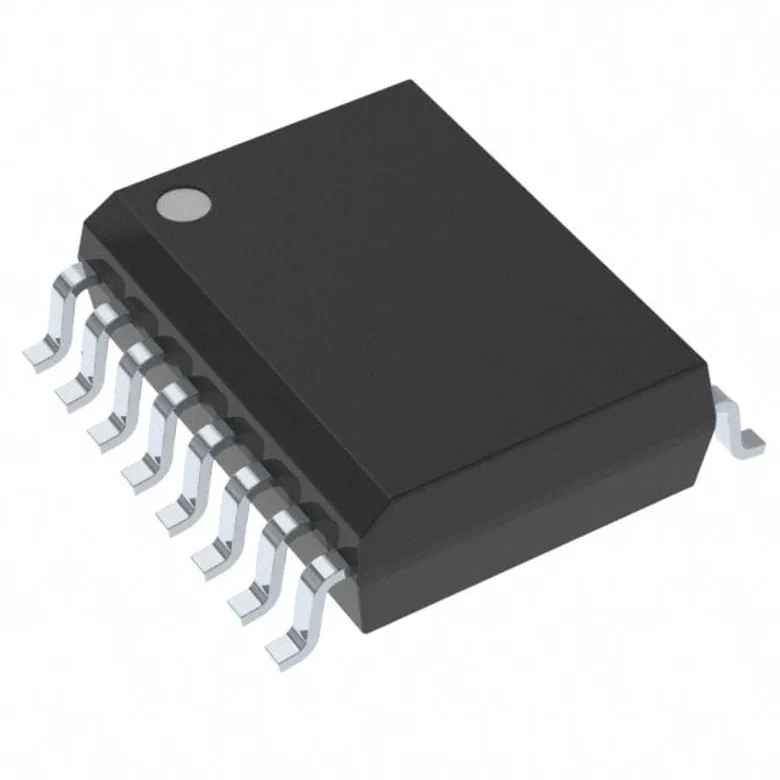

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments CD4536BDW
Manufacturer
Manufacturer Product Number
CD4536BDW
Description
IC OSC PROG TIMER 5MHZ 16-SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
Programmable Timer IC 5MHz 16-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
3V ~ 18V
Count
2 ~ 2²⁴
Mounting Type
Surface Mount
Supplier Device Package
16-SOIC
Frequency
5MHz
Package / Case
16-SOIC (0.295", 7.50mm Width)
Type
Programmable Timer
Current - Supply
3 mA
