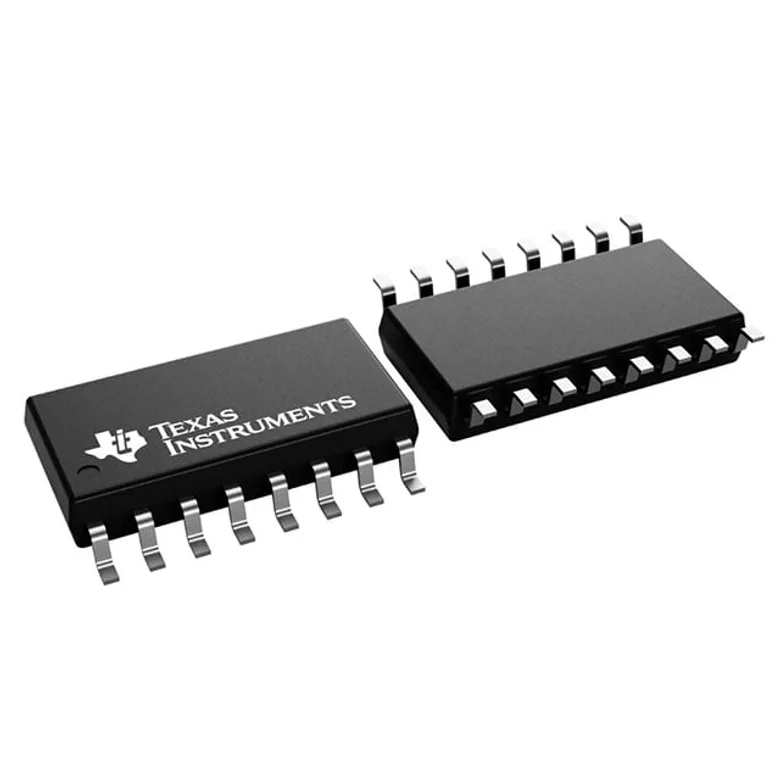

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments CD74HC595NSR
Manufacturer
Manufacturer Product Number
CD74HC595NSR
Description
IC SHFT REG TRI-STATE 8BIT 16-SO
Manufacturer Standard Lead Time Contact us
Detailed Description
Shift Shift Register 1 Element 8 Bit 16-SO
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Number of Bits per Element
8
Logic Type
Shift Register
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
2V ~ 6V
Output Type
Tri-State
Mounting Type
Surface Mount
Supplier Device Package
16-SO
Number of Elements
1
Package / Case
16-SOIC (0.209", 5.30mm Width)
Function
Serial to Parallel, Serial
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
CD74HC595NSR
809867
296-18403-1-ND
296-18403-6-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 30.000 ₫ 30.000 ₫
30.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
30.000 ₫
30.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
30.000 ₫
30.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
CD74HC595NS
IC SHFT REG TRI-STATE 8BIT 16-SO
11.000 ₫ Texas Instruments
Substitutes
MC74HC595AFL1
IC SR TRI-STATE 8BIT 16-SOEIAJ
10.000 ₫ onsemi
MC74HC595AFL2
IC SR TRI-STATE 8BIT 16-SOEIAJ
10.000 ₫ onsemi
MM74HC595MX
IC SR TRI-STATE 8BIT 16-SOIC
6.000 ₫ onsemi
MM74HC595M
IC SR TRI-STATE 8BIT 16-SOIC
16.000 ₫ onsemi
74HC595D,118
IC SHFT REG TRI-STATE 8BIT 16-SO
3.000 ₫ Nexperia USA Inc.
