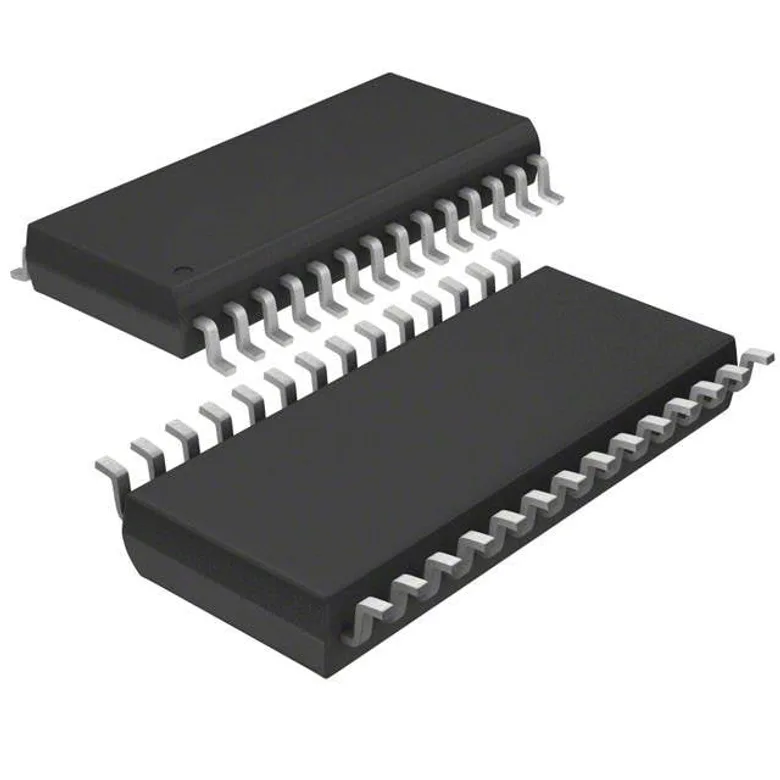

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments CDCD5704PW
Manufacturer
Manufacturer Product Number
CDCD5704PW
Description
IC CLK/FREQ GEN MEMORY 28-TSSOP
Manufacturer Standard Lead Time 10 Days
Detailed Description
Memory, RDRAM; Extreme Data Rate (XDR™) Clock/Frequency Generator, Multiplexer IC 800MHz 1 Output 28-TSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
0°C ~ 70°C
DigiKey Programmable
Not Verified
Voltage - Supply
2.375V ~ 2.625V
Mounting Type
Surface Mount
Output
Clock
Ratio - Input:Output
1:4
Differential - Input:Output
Yes/Yes
Supplier Device Package
28-TSSOP
PLL
Yes
Main Purpose
Memory, RDRAM; Extreme Data Rate (XDR™)
Frequency - Max
800MHz
Package / Case
28-TSSOP (0.173", 4.40mm Width)
Input
Clock
Number of Circuits
1
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
CDCD5704PW
13468626
2156-CDCD5704PW-ND
296-21383-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 6,220
Packaging Quantity Unit Price Ext Price
1 134.000 ₫ 134.000 ₫
134.000 ₫
All prices are shown in the selected currency
Bulk · Digikey
Quantity Unit Price Ext Price
58
134.000 ₫
7.772.000 ₫
MOQ 58 · Order multiple 58
Tube · Digikey
Quantity Unit Price Ext Price
100
124.000 ₫
12.400.000 ₫
MOQ 100 · Order multiple 100
