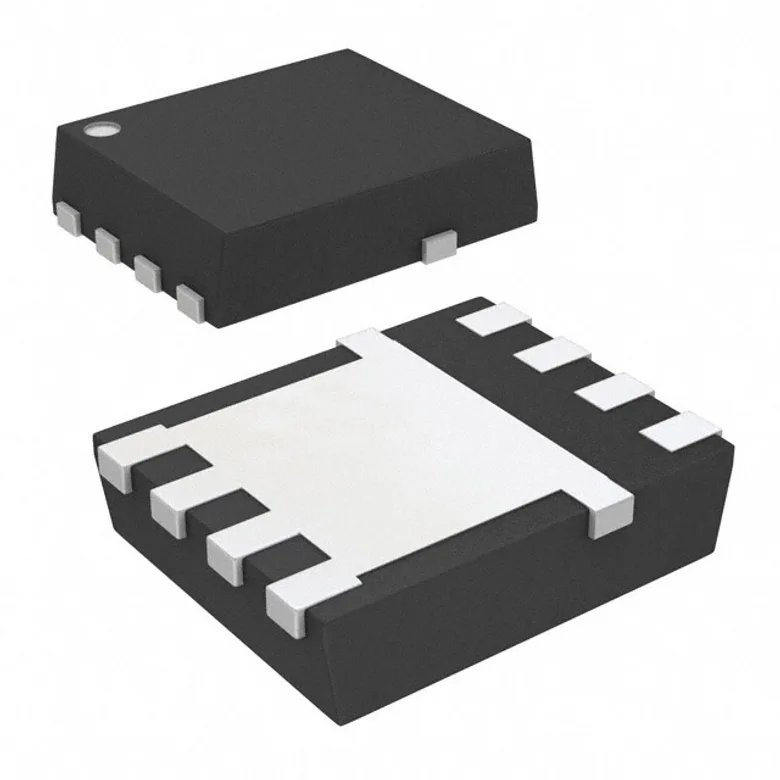

Texas Instruments CSD18504Q5A
Manufacturer
Manufacturer Product Number
CSD18504Q5A
Description
MOSFET N-CH 40V 15A/50A 8VSON
Manufacturer Standard Lead Time Contact us
Detailed Description
MOSFET N-CH 40V 15A/50A 8VSON
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Gate Charge (Qg) (Max) @ Vgs
19 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds
1656 pF @ 20 V
Operating Temperature
-55°C ~ 150°C (TJ)
Power Dissipation (Max)
3.1W (Ta), 77W (Tc)
Qualification
-
Technology
MOSFET (Metal Oxide)
FET Type
N-Channel
Current - Continuous Drain (Id) @ 25°C
15A (Ta), 50A (Tc)
Rds On (Max) @ Id, Vgs
6.6mOhm @ 17A, 10V
Vgs(th) (Max) @ Id
2.4V @ 250µA
Mounting Type
Surface Mount
FET Feature
-
Supplier Device Package
8-VSONP (5x6)
Package / Case
8-PowerTDFN
Grade
-
Drive Voltage (Max Rds On, Min Rds On)
4.5V, 10V
Vgs (Max)
±20V
Drain to Source Voltage (Vdss)
40 V
