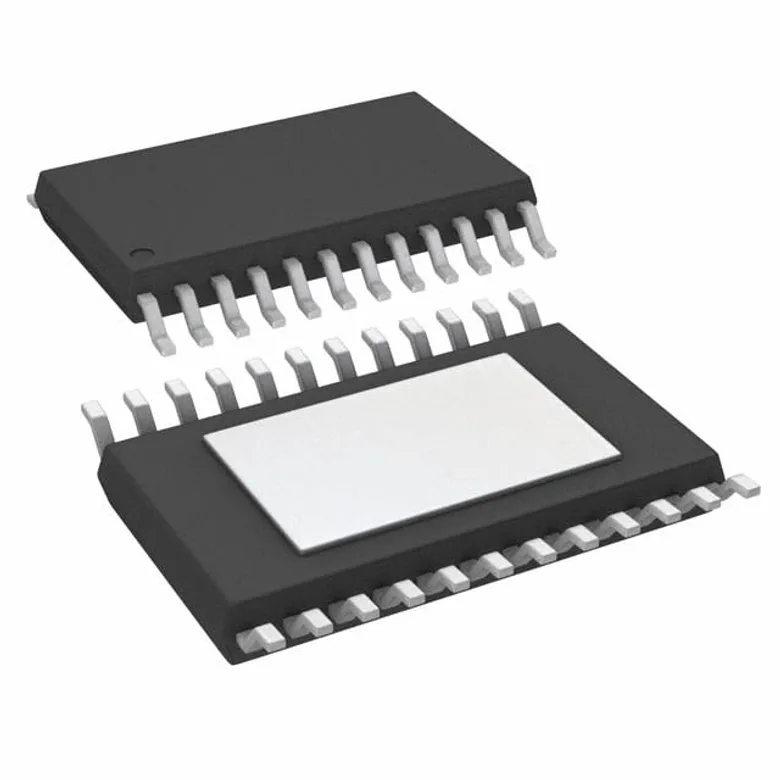

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments DAC7760IPWPR
Manufacturer
Manufacturer Product Number
DAC7760IPWPR
Description
IC DAC 12BIT 24-HTSSOP
Manufacturer Standard Lead Time Contact us
Detailed Description
12 Bit Digital to Analog Converter 1 24-HTSSOP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Data Interface
SPI, DSP
Reference Type
External, Internal
Operating Temperature
-40°C ~ 125°C
Voltage - Supply, Analog
10V ~ 36V, -18V
Voltage - Supply, Digital
2.7V ~ 5.5V
Output Type
Voltage or Current - Buffered
Mounting Type
Surface Mount
Settling Time
25µs (Typ)
Supplier Device Package
24-HTSSOP
Architecture
String DAC
Number of Bits
12
Package / Case
24-PowerTSSOP (0.173", 4.40mm Width)
Number of D/A Converters
1
INL/DNL (LSB)
-, ±1 (Max)
Differential Output
No
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
DAC7760IPWPR
4555637
296-37188-1-ND
296-37188-2-ND
296-37188-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,257
Packaging Quantity Unit Price Ext Price
1 259.000 ₫ 259.000 ₫
259.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
259.000 ₫
259.000 ₫
10
202.000 ₫
2.020.000 ₫
25
188.000 ₫
4.700.000 ₫
100
172.000 ₫
17.200.000 ₫
250
169.000 ₫
42.250.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,000
106.000 ₫
212.000.000 ₫
MOQ 2,000 · Order multiple 2,000
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
259.000 ₫
259.000 ₫
10
202.000 ₫
2.020.000 ₫
25
188.000 ₫
4.700.000 ₫
100
172.000 ₫
17.200.000 ₫
250
169.000 ₫
42.250.000 ₫
MOQ 1 · Order multiple 1
