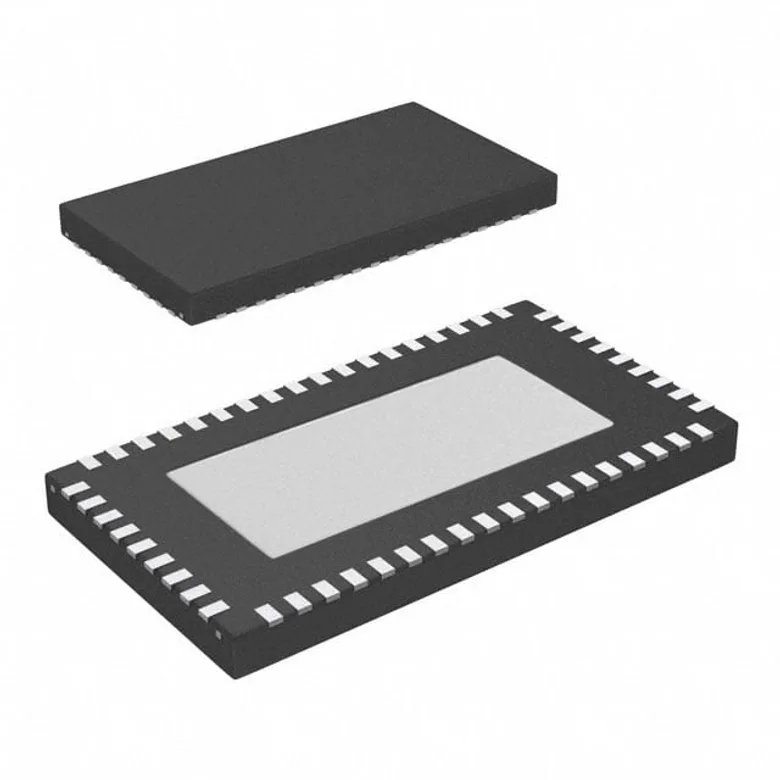

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments DS80PCI810NJYR
Manufacturer
Manufacturer Product Number
DS80PCI810NJYR
Description
IC REDRIVER PCIE 8CHAN 54WQFN
Manufacturer Standard Lead Time Contact us
Detailed Description
IC REDRIVER PCIE 8CHAN 54WQFN
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Capacitance - Input
5 pF
Delay Time
80ps
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
2.5V ~ 3.3V
Applications
PCI Express®
Current - Supply
220mA
Number of Channels
8
Mounting Type
Surface Mount
Output
CML
Data Rate (Max)
8Gbps
Supplier Device Package
54-WQFN (10x5.5)
Package / Case
54-WFQFN Exposed Pad
Signal Conditioning
-
Type
Buffer, ReDriver
Input
CML
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
DS80PCI810NJYR
5179209
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
Alternate Packaging
DS80PCI810NJYT
IC REDRIVER PCIE 8CHAN 54WQFN
414.000Â â‚« Texas Instruments
DS80PCI810NJYT
IC REDRIVER PCIE 8CHAN 54WQFN
414.000Â â‚« Texas Instruments
DS80PCI810NJYT
IC REDRIVER PCIE 8CHAN 54WQFN
414.000Â â‚« Texas Instruments
Substitutes
DS80PCI810NJYT
IC REDRIVER PCIE 8CHAN 54WQFN
414.000Â â‚« Texas Instruments
