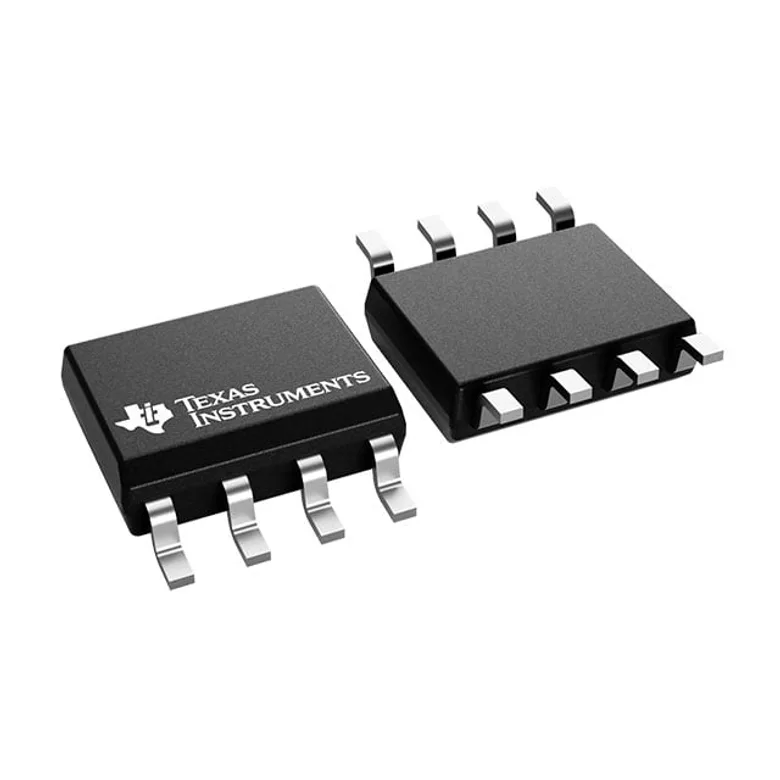

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO7021FD
Manufacturer
Manufacturer Product Number
ISO7021FD
Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
1.71V ~ 1.89V, 2.25V ~ 5.5V
Data Rate
4Mbps
Technology
Capacitive Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/1
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
5ns, 5ns
Common Mode Transient Immunity (Min)
100kV/µs
Propagation Delay tpLH / tpHL (Max)
165ns, 165ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
10ns
Type
General Purpose
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ISO7021FD
10710932
296-ISO7021FD-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,571
Packaging Quantity Unit Price Ext Price
1 102.000 ₫ 102.000 ₫
102.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
102.000 ₫
102.000 ₫
10
77.000 ₫
770.000 ₫
75
65.000 ₫
4.875.000 ₫
150
62.000 ₫
9.300.000 ₫
300
60.000 ₫
18.000.000 ₫
525
59.000 ₫
30.975.000 ₫
1,050
57.000 ₫
59.850.000 ₫
2,550
55.000 ₫
140.250.000 ₫
MOQ 1 · Order multiple 1
