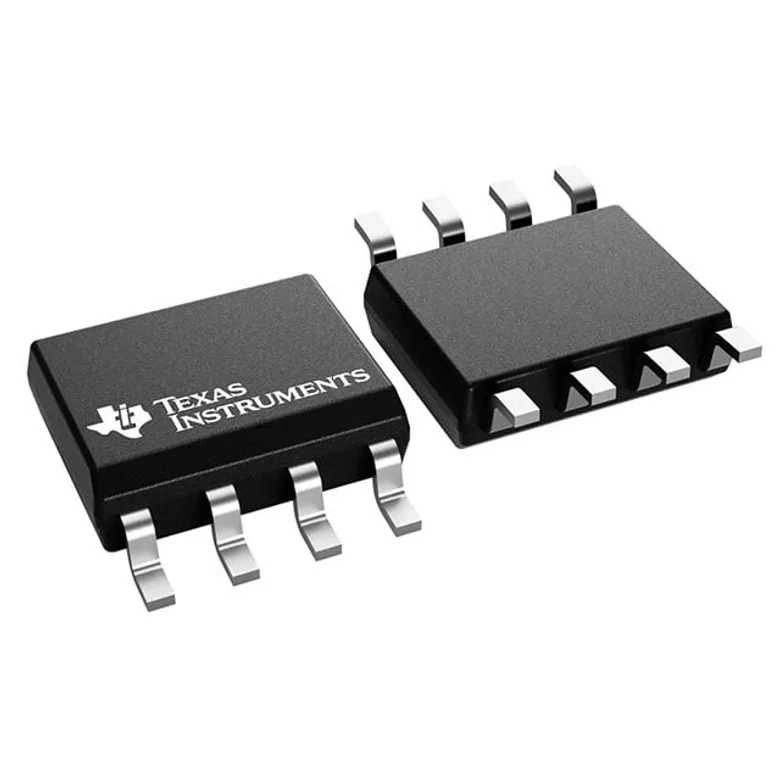

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO722DR
Manufacturer
Manufacturer Product Number
ISO722DR
Description
DGTL ISOLTR 2.5KV 1CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 2500Vrms 1 Channel 100Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
3V ~ 5.5V
Data Rate
100Mbps
Technology
Capacitive Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
1ns, 1ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
24ns, 24ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
2ns
Type
General Purpose
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Training Modules
Product Change Notices
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ISO722DR
1096027
296-19768-1-ND
296-19768-2-ND
296-19768-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 9,780
Packaging Quantity Unit Price Ext Price
1 117.000 ₫ 117.000 ₫
117.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
117.000 ₫
117.000 ₫
10
89.000 ₫
890.000 ₫
25
82.000 ₫
2.050.000 ₫
100
74.000 ₫
7.400.000 ₫
250
70.000 ₫
17.500.000 ₫
500
70.000 ₫
35.000.000 ₫
MOQ 1 · Order multiple 1
Tape & Reel (TR) · Digikey
Quantity Unit Price Ext Price
2,500
64.000 ₫
160.000.000 ₫
MOQ 2,500 · Order multiple 2,500
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
117.000 ₫
117.000 ₫
10
89.000 ₫
890.000 ₫
25
82.000 ₫
2.050.000 ₫
100
74.000 ₫
7.400.000 ₫
250
70.000 ₫
17.500.000 ₫
500
70.000 ₫
35.000.000 ₫
MOQ 1 · Order multiple 1
