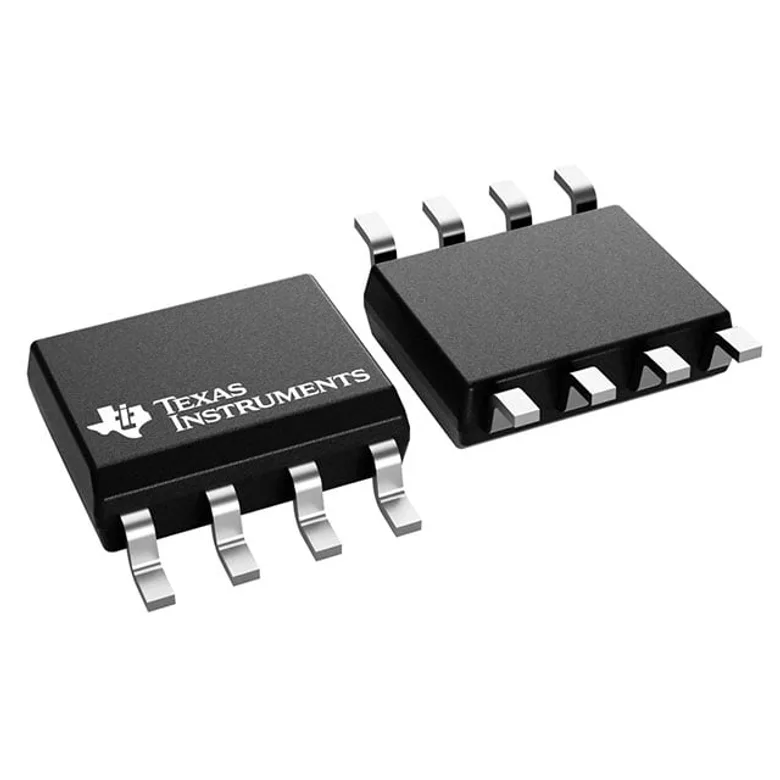

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO722MDR
Manufacturer
Manufacturer Product Number
ISO722MDR
Description
DGTL ISOLTR 2.5KV 1CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 2500Vrms 1 Channel 150Mbps 25kV/µs CMTI 8-SOIC (0.154", 3.90mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
3V ~ 5.5V
Data Rate
150Mbps
Technology
Capacitive Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
1ns, 1ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
16ns, 16ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
1ns
Type
General Purpose
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Training Modules
Additional Resources
Attribute
Description
Part Number Alias
ISO722MDR
1096051
296-19769-1-ND
296-19769-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 1,643
Packaging Quantity Unit Price Ext Price
1 126.000 ₫ 126.000 ₫
126.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
126.000 ₫
126.000 ₫
10
96.000 ₫
960.000 ₫
25
88.000 ₫
2.200.000 ₫
100
80.000 ₫
8.000.000 ₫
250
76.000 ₫
19.000.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
126.000 ₫
126.000 ₫
10
96.000 ₫
960.000 ₫
25
88.000 ₫
2.200.000 ₫
100
80.000 ₫
8.000.000 ₫
250
76.000 ₫
19.000.000 ₫
MOQ 1 · Order multiple 1
