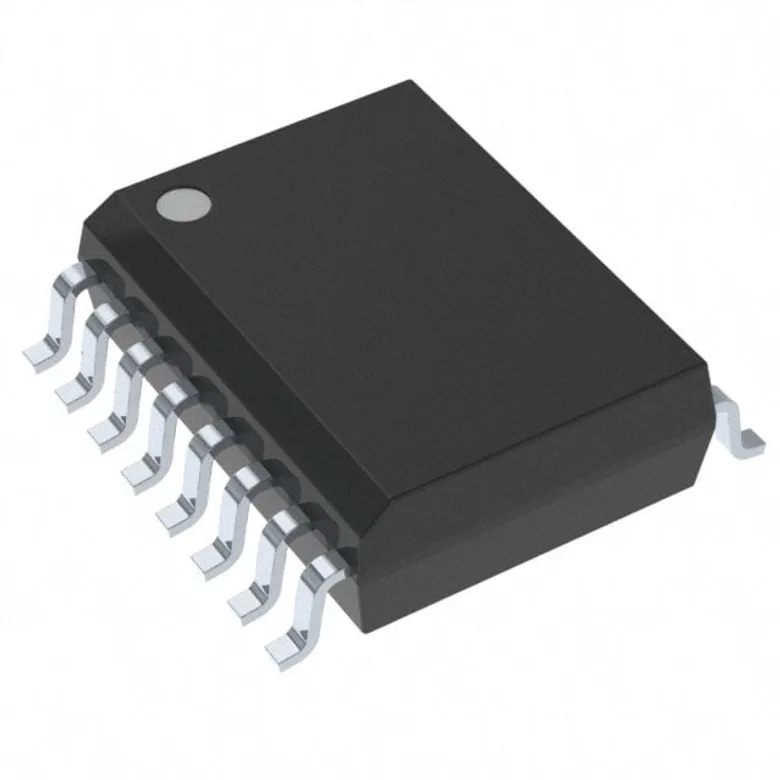

Texas Instruments ISO7230CDWR
Manufacturer
Manufacturer Product Number
ISO7230CDWR
Description
DGTL ISOLTR 2.5KV 3CH GP 16-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
General Purpose Digital Isolator 2500Vrms 3 Channel 25Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
3.15V ~ 5.5V
Data Rate
25Mbps
Technology
Capacitive Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
3/0
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
2ns, 2ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
42ns, 42ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
2.5ns
Type
General Purpose
Number of Channels
3
Documents & Media
Resource Type
Link
Datasheets
Training Modules
Additional Resources
Attribute
Description
Part Number Alias
ISO7230CDWR
7033699
296-46103-1-ND
296-46103-6-ND
