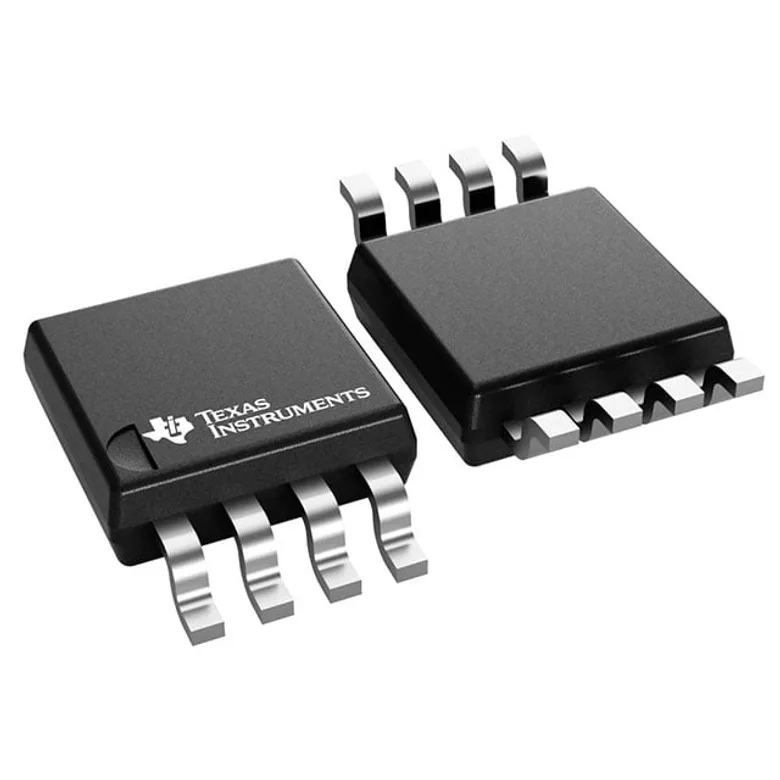

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO7320FCD
Manufacturer
Manufacturer Product Number
ISO7320FCD
Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
3V ~ 5.5V
Data Rate
25Mbps
Technology
Capacitive Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
2/0
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
2.4ns, 2.1ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
57ns, 57ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
4ns
Type
General Purpose
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
Featured Products
Additional Resources
Attribute
Description
Part Number Alias
ISO7320FCD
5405187
296-42438-5-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 9
Packaging Quantity Unit Price Ext Price
1 240.000 ₫ 240.000 ₫
240.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
240.000 ₫
240.000 ₫
10
186.000 ₫
1.860.000 ₫
75
161.000 ₫
12.075.000 ₫
150
155.000 ₫
23.250.000 ₫
300
150.000 ₫
45.000.000 ₫
525
147.000 ₫
77.175.000 ₫
1,050
144.000 ₫
151.200.000 ₫
MOQ 1 · Order multiple 1
