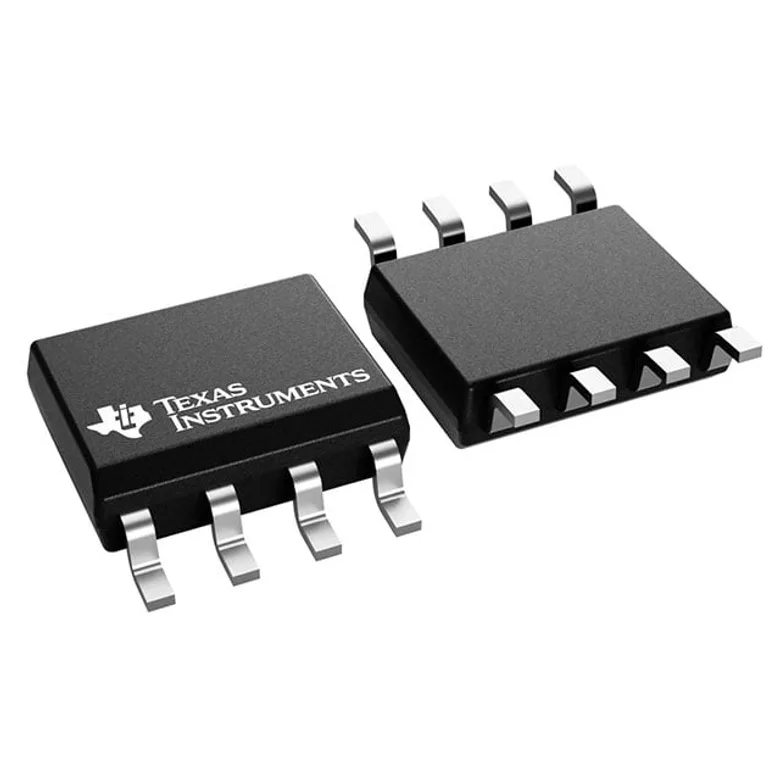

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO7321FCQDQ1
Manufacturer
Manufacturer Product Number
ISO7321FCQDQ1
Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 2CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C
Qualification
AEC-Q100
Voltage - Supply
3V ~ 5.5V
Data Rate
25Mbps
Technology
Capacitive Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/1
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
2.4ns, 2.1ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
57ns, 57ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
4ns
Type
General Purpose
Grade
Automotive
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
Product Change Notices
Additional Resources
Attribute
Description
Part Number Alias
ISO7321FCQDQ1
6571994
ISO7321FCQDQ1-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 164.000 ₫ 164.000 ₫
164.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
300
164.000 ₫
49.200.000 ₫
MOQ 300 · Order multiple 300
Alternate Packaging
ISO7321FCQDRQ1
DGTL ISOLTR 3KV 2CH GP 8-SOIC
135.000 ₫ Texas Instruments
ISO7321FCQDRQ1
DGTL ISOLTR 3KV 2CH GP 8-SOIC
231.000 ₫ Texas Instruments
ISO7321FCQDRQ1
DGTL ISOLTR 3KV 2CH GP 8-SOIC
231.000 ₫ Texas Instruments
Substitutes
SI8621EC-B-ISR
DGTL ISOLTR 3.75KV 2CH GP 8-SOIC
36.000 ₫ Skyworks Solutions Inc.
ISO7321FCQDRQ1
DGTL ISOLTR 3KV 2CH GP 8-SOIC
135.000 ₫ Texas Instruments
ISO7321FCDR
DGTL ISOLTR 3KV 2CH GP 8-SOIC
117.000 ₫ Texas Instruments
ISO7321CDR
DGTL ISOLTR 3KV 2CH GP 8-SOIC
117.000 ₫ Texas Instruments
ISO7321CQDRQ1
DGTL ISOLTR 3KV 2CH GP 8-SOIC
231.000 ₫ Texas Instruments
SI8622EC-B-ISR
DGTL ISOLTR 3.75KV 2CH GP 8-SOIC
36.000 ₫ Skyworks Solutions Inc.
SI8622BC-B-IS
DGTL ISOLTR 3.75KV 2CH GP 8-SOIC
69.000 ₫ Skyworks Solutions Inc.
SI8621BC-B-IS
DGTL ISOLTR 3.75KV 2CH GP 8-SOIC
69.000 ₫ Skyworks Solutions Inc.
ISO7321CD
DGTL ISOLTR 3KV 2CH GP 8-SOIC
240.000 ₫ Texas Instruments
ISO7321FCD
DGTL ISOLTR 3KV 2CH GP 8-SOIC
240.000 ₫ Texas Instruments
ISO7321CQDQ1
DGTL ISOLTR 3KV 2CH GP 8-SOIC
164.000 ₫ Texas Instruments
