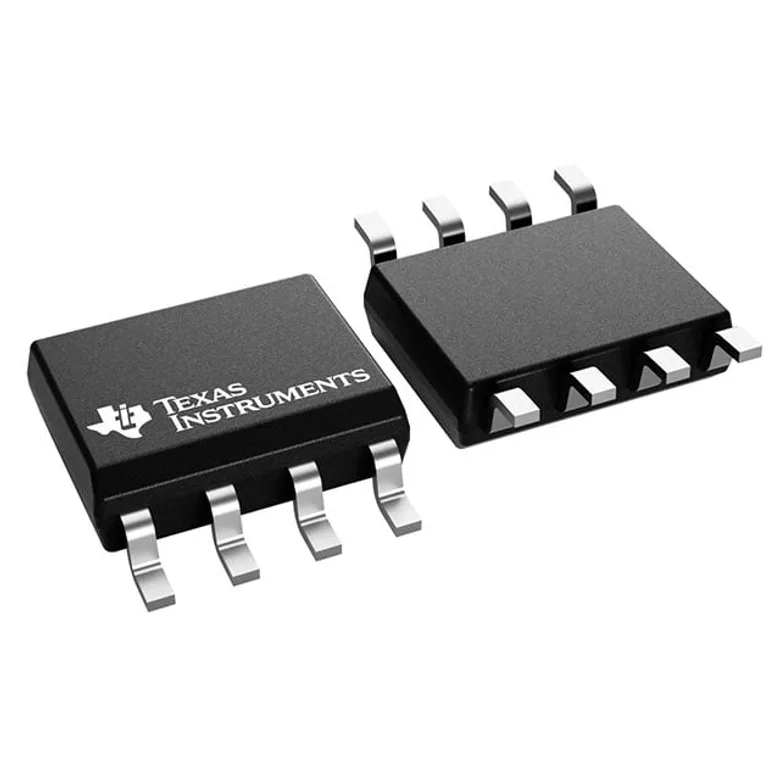

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO7421EDR
Manufacturer
Manufacturer Product Number
ISO7421EDR
Description
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 2.5KV 2CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-40°C ~ 125°C
Voltage - Supply
3V ~ 5.5V
Data Rate
50Mbps
Technology
Capacitive Coupling
Voltage - Isolation
2500Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/1
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
1.8ns, 1.7ns
Common Mode Transient Immunity (Min)
25kV/µs
Propagation Delay tpLH / tpHL (Max)
11ns, 11ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
3.7ns
Type
General Purpose
Number of Channels
2
Documents & Media
Resource Type
Link
Datasheets
Training Modules
Additional Resources
Attribute
Description
Part Number Alias
ISO7421EDR
7033474
296-46299-1-ND
296-46299-6-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 662
Packaging Quantity Unit Price Ext Price
1 222.000 ₫ 222.000 ₫
222.000 ₫
All prices are shown in the selected currency
Cut Tape (CT) · Digikey
Quantity Unit Price Ext Price
1
222.000 ₫
222.000 ₫
10
172.000 ₫
1.720.000 ₫
25
159.000 ₫
3.975.000 ₫
100
146.000 ₫
14.600.000 ₫
250
143.000 ₫
35.750.000 ₫
MOQ 1 · Order multiple 1
Digi-Reel® · Digikey
Quantity Unit Price Ext Price
1
215.000 ₫
215.000 ₫
10
167.000 ₫
1.670.000 ₫
25
155.000 ₫
3.875.000 ₫
100
142.000 ₫
14.200.000 ₫
250
135.000 ₫
33.750.000 ₫
500
131.000 ₫
65.500.000 ₫
1,000
128.000 ₫
128.000.000 ₫
MOQ 1 · Order multiple 1
