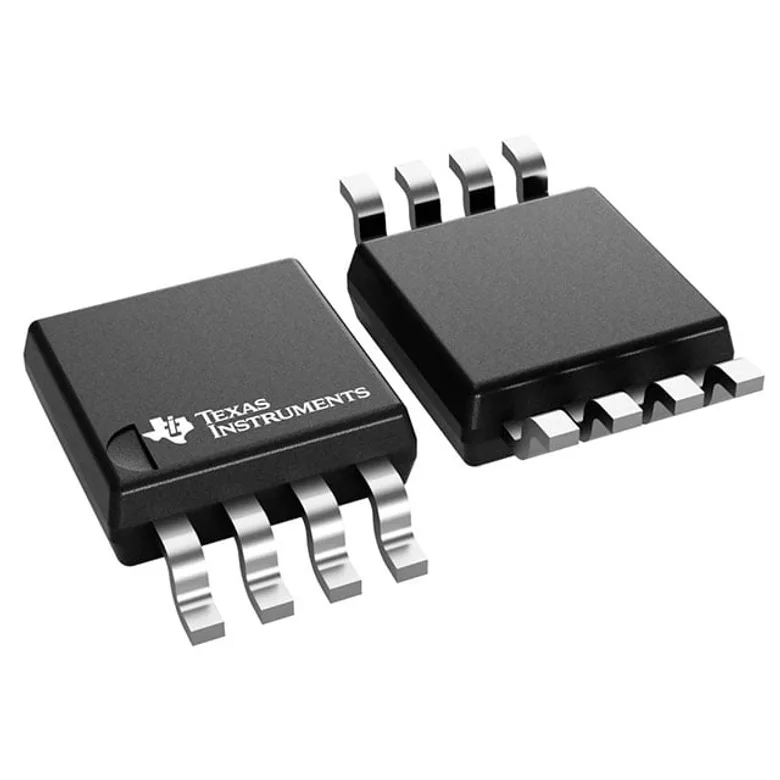

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments ISO7710D
Manufacturer
Manufacturer Product Number
ISO7710D
Description
DGTL ISOLTR 3KV 1CH GP 8-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 3KV 1CH GP 8-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
2.25V ~ 5.5V
Data Rate
100Mbps
Technology
Capacitive Coupling
Voltage - Isolation
3000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/0
Supplier Device Package
8-SOIC
Package / Case
8-SOIC (0.154", 3.90mm Width)
Rise / Fall Time (Typ)
1.8ns, 1.9ns
Common Mode Transient Immunity (Min)
85kV/µs
Propagation Delay tpLH / tpHL (Max)
16ns, 16ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
4.9ns
Type
General Purpose
Number of Channels
1
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Related Documents
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
ISO7710D
7556146
ISO7710D-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 16,022
Packaging Quantity Unit Price Ext Price
1 59.000 ₫ 59.000 ₫
59.000 ₫
All prices are shown in the selected currency
Tube · Digikey
Quantity Unit Price Ext Price
1
59.000 ₫
59.000 ₫
10
44.000 ₫
440.000 ₫
75
36.000 ₫
2.700.000 ₫
150
35.000 ₫
5.250.000 ₫
300
33.000 ₫
9.900.000 ₫
525
33.000 ₫
17.325.000 ₫
1,050
32.000 ₫
33.600.000 ₫
2,550
31.000 ₫
79.050.000 ₫
5,025
30.000 ₫
150.750.000 ₫
MOQ 1 · Order multiple 1
Alternate Packaging
ISO7710DR
DGTL ISOLTR 3KV 1CH GP 8-SOIC
21.000 ₫ Texas Instruments
Substitutes
SI8710CC-B-ISR
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
25.000 ₫ Skyworks Solutions Inc.
SI8710CD-B-ISR
DGTL ISOLTR 5KV 1CH GP 6-SOIC
37.000 ₫ Skyworks Solutions Inc.
SI8710AC-B-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
55.000 ₫ Skyworks Solutions Inc.
SI8610BC-B-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
57.000 ₫ Skyworks Solutions Inc.
SI8610BB-B-IS
DGTL ISOLTR 2.5KV 1CH GP 8-SOIC
54.000 ₫ Skyworks Solutions Inc.
SI8712BC-B-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
59.000 ₫ Skyworks Solutions Inc.
ISO7710DR
DGTL ISOLTR 3KV 1CH GP 8-SOIC
21.000 ₫ Texas Instruments
SI8715BC-A-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
59.000 ₫ Skyworks Solutions Inc.
SI8610AB-B-ISR
DGTL ISOLTR 2.5KV 1CH GP 8-SOIC
28.000 ₫ Skyworks Solutions Inc.
SI8710BC-B-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
59.000 ₫ Skyworks Solutions Inc.
SI8710CC-B-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
49.000 ₫ Skyworks Solutions Inc.
SI8711CC-B-IS
DGTL ISOLTR 3.75KV 1CH GP 8-SOIC
49.000 ₫ Skyworks Solutions Inc.
