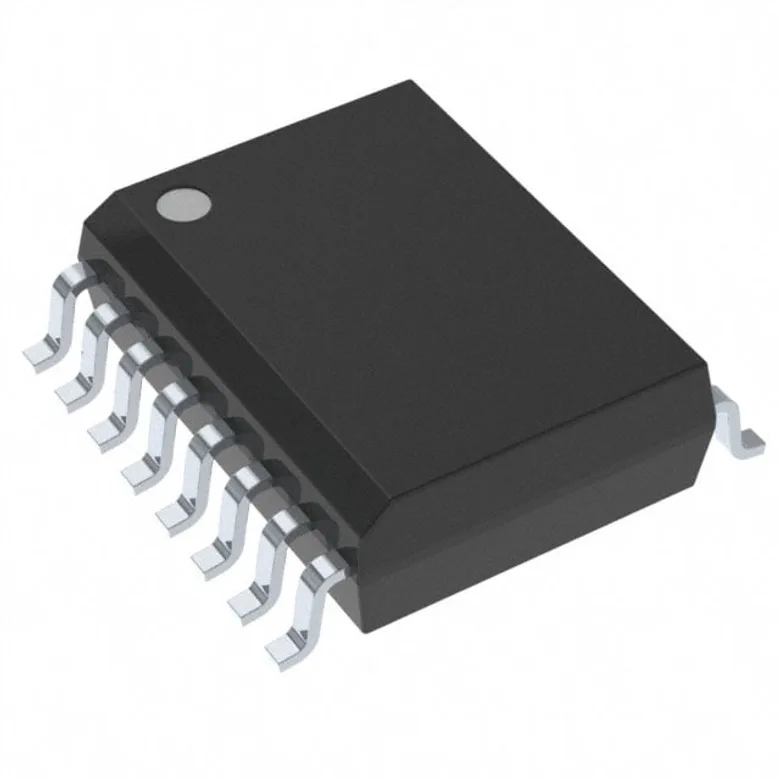

Texas Instruments ISO7760DW
Manufacturer
Manufacturer Product Number
ISO7760DW
Description
DGTL ISOLTR 5KV 6CH GP 16-SOIC
Manufacturer Standard Lead Time Contact us
Detailed Description
DGTL ISOLTR 5KV 6CH GP 16-SOIC
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
2.25V ~ 5.5V
Data Rate
100Mbps
Technology
Capacitive Coupling
Voltage - Isolation
5000Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
6/0
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
1.1ns, 1.4ns
Common Mode Transient Immunity (Min)
85kV/µs
Propagation Delay tpLH / tpHL (Max)
16ns, 16ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
4.9ns
Type
General Purpose
Number of Channels
6
