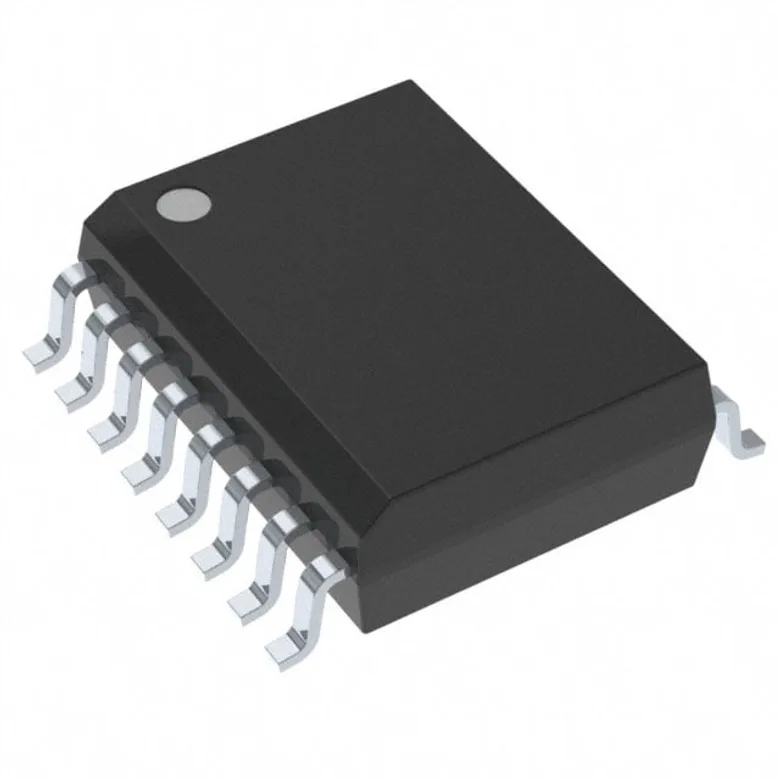

Texas Instruments ISO7821LLDWR
Manufacturer
Manufacturer Product Number
ISO7821LLDWR
Description
DGTL ISOLTR 5.7KV 2CH GP 16-SOIC
Manufacturer Standard Lead Time 10 Days
Detailed Description
General Purpose Digital Isolator 5700Vrms 2 Channel 100Mbps 100kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Operating Temperature
-55°C ~ 125°C
Voltage - Supply
2.25V ~ 5.5V
Data Rate
100Mbps
Technology
Capacitive Coupling
Voltage - Isolation
5700Vrms
Mounting Type
Surface Mount
Inputs - Side 1/Side 2
1/1
Supplier Device Package
16-SOIC
Package / Case
16-SOIC (0.295", 7.50mm Width)
Rise / Fall Time (Typ)
-
Common Mode Transient Immunity (Min)
100kV/µs
Propagation Delay tpLH / tpHL (Max)
25ns, 25ns
Isolated Power
No
Channel Type
Unidirectional
Pulse Width Distortion (Max)
4.5ns
Type
General Purpose
Number of Channels
2
