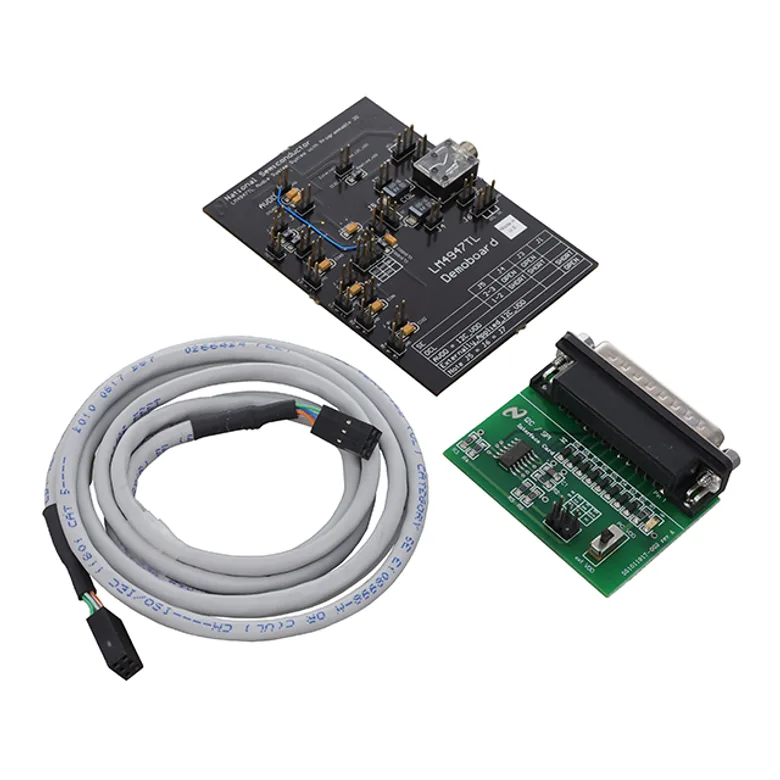

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments LM4947TLEVAL
Manufacturer
Manufacturer Product Number
LM4947TLEVAL
Description
EVAL BOARD FOR LM4947
Manufacturer Standard Lead Time Contact us
Detailed Description
EVAL BOARD FOR LM4947
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Contents
Board(s)
Voltage - Supply
2.7V ~ 5.5V
Output Type
1-Channel (Mono) with Stereo Headphones
Max Output Power x Channels @ Load
1.19W x 1 @ 8Ohm; 87mW x 2 @ 32Ohm
Utilized IC / Part
LM4947
Note
-
Amplifier Type
Class D
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
LM4947TLEVAL
1640779
296-49735-ND
Availability
In Stock
Updated
5/16/2026
In-Stock: 2
Packaging Quantity Unit Price Ext Price
1 9.319.000Â â‚« 9.319.000Â â‚«
9.319.000Â â‚«
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
9.319.000Â â‚«
9.319.000Â â‚«
MOQ 1 · Order multiple 1
For Use With
LM4947TL/NOPB
IC AMP CLASS D MONO 1.19W 25USMD
79.000Â â‚« Texas Instruments
LM4947TL/NOPB
IC AMP CLASS D MONO 1.19W 25USMD
79.000Â â‚« Texas Instruments
LM4947TL/NOPB
IC AMP CLASS D MONO 1.19W 25USMD
79.000Â â‚« Texas Instruments
