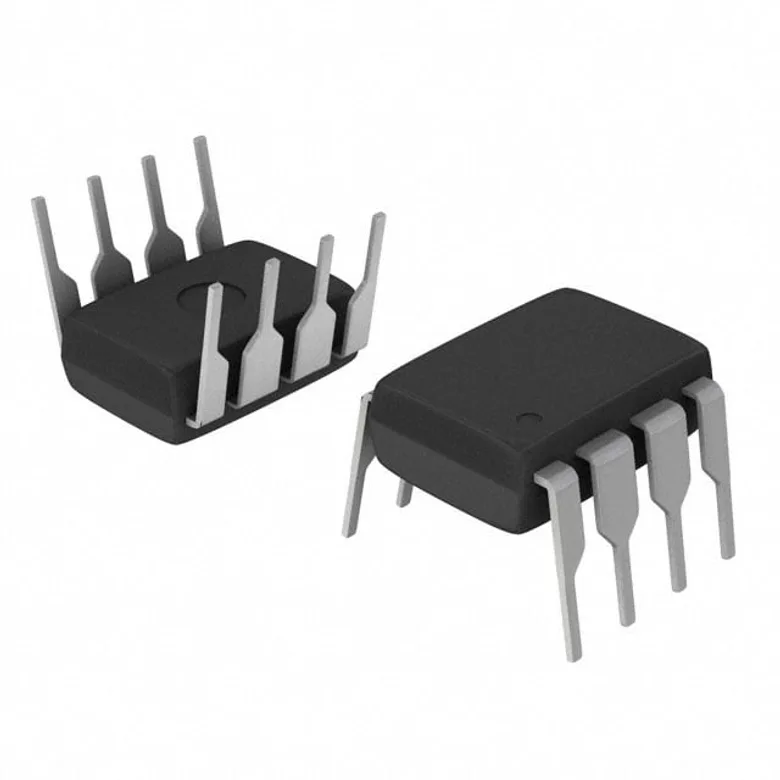

Image shown is representative only. Exact specifications should be obtained from the product datasheet.
Texas Instruments LMC555CN
Manufacturer
Manufacturer Product Number
LMC555CN
Description
IC OSC SINGLE TIMER 3MHZ 8-DIP
Manufacturer Standard Lead Time Contact us
Detailed Description
555 Type, Timer/Oscillator (Single) IC 3MHz 8-PDIP
Datasheet View datasheet
EDA/CAD Models
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Operating Temperature
-40°C ~ 85°C
Voltage - Supply
1.5V ~ 15V
Count
-
Mounting Type
Through Hole
Supplier Device Package
8-PDIP
Frequency
3MHz
Package / Case
8-DIP (0.300", 7.62mm)
Type
555 Type, Timer/Oscillator (Single)
Current - Supply
150 µA
Documents & Media
Resource Type
Link
Datasheets
EDA Models
Product Change Notices
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
LMC555CN
3701365
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 0Â â‚« 0Â â‚«
0Â â‚«
All prices are shown in the selected currency
