Image shown is representative only. Exact specifications should be obtained from the product datasheet.

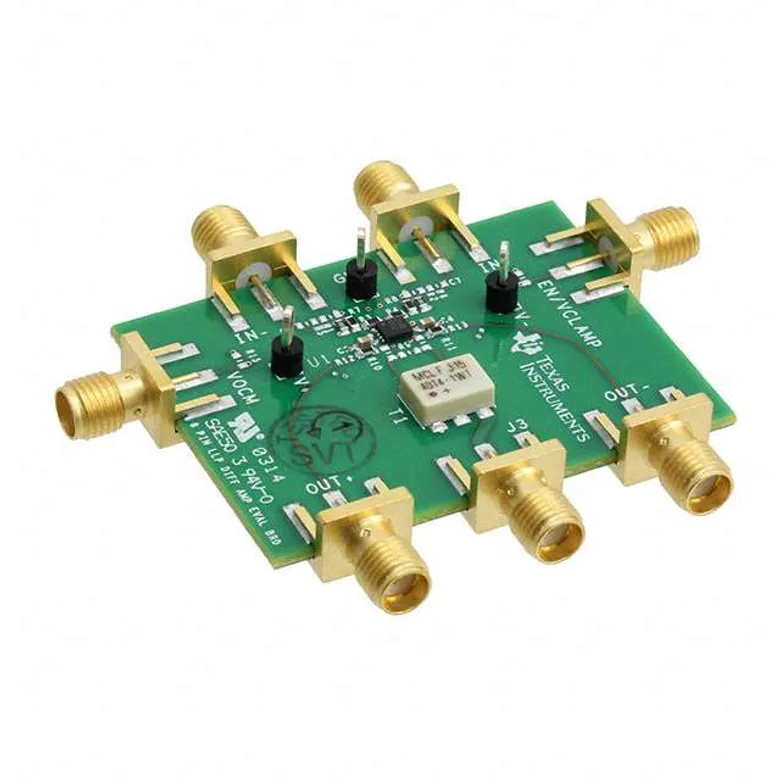

Texas Instruments LMH6552SDEVAL
Manufacturer
Manufacturer Product Number
LMH6552SDEVAL
Description
EVAL BOARD FOR LMH6552
Manufacturer Standard Lead Time Contact us
Detailed Description
LMH6552 - 1 - Single Channels per IC Differential Amplifier Evaluation Board
Datasheet View datasheet
Product Attributes
Type
Description
Manufacturer
Texas Instruments
Product Status
Obsolete
Contents
Board(s)
Output Type
Differential
Slew Rate
3800V/µs
Gain Bandwidth Product
-
Voltage - Supply, Single/Dual (±)
4.5V ~ 12V, ±2.25V ~ 6V
Utilized IC / Part
LMH6552
Channels per IC
1 - Single
Note
-
Amplifier Type
Differential
Current - Output / Channel
80mA
Current - Supply (Main IC)
22.5mA
-3db Bandwidth
1.5GHz
Documents & Media
Resource Type
Link
Datasheets
Environmental & Export Classifications
Attribute
Description
Product Status
Obsolete
Additional Resources
Attribute
Description
Part Number Alias
LMH6552SDEVAL
1831556
LMH6552SDEVAL-ND
Availability
Out of Stock
Updated
5/16/2026
In-Stock: 0
Packaging Quantity Unit Price Ext Price
1 4.132.000 ₫ 4.132.000 ₫
4.132.000 ₫
All prices are shown in the selected currency
Box · Digikey
Quantity Unit Price Ext Price
1
4.132.000 ₫
4.132.000 ₫
MOQ 1 · Order multiple 1
For Use With
LMH6552MA/NOPB
IC OPAMP CFA 1 CIRCUIT 8SOIC
246.000 ₫ Texas Instruments
